Autocorrelation noise free Optical Coherence Tomography using the novel concept of resonant OCT (ROCT)



Optical Coherence Tomography OCT is a noninvasive imaging technique that takes pictures of cross sections of human body tissues with a great resolution compared to other techniques. Fourier Domain OCT method provides significant improvement of imaging speed and detection sensitivity but suffers from autocorrelation noise arising as interference signals from reflections of sample layers that tends to obscure some of sample structure details.


We present in this paper a new implementation of Common Path Optical Coherence Tomography, based on a resonant structure. The structure employs a semiconductor optical amplifier SOA and uses two mirrors, one coated fiber end and the other is the sample under test. Amplified multiple reflections between the laser cavity high reflection mirror and the sample layers along with SOA gain behavior results in the reduction of autocorrelation noise.


Autocorrelation noise is greatly reduced by a factor of 5 dB compared to an ordinary FDOCT system.


This new structure, with the absence of autocorrelation noise that covers some of the details of the sample under test in OCT setups, is capable practically of attaining images with higher resolution.


Optical Coherence Tomography has become a powerful imaging technique which started in ophthalmological domain in the 1990’s. Since then it is widely applied in many other medical areas where it is used in diagnosis of diseases, and in technical fields. Nowadays there are many diseases as cancer which require a resolution in the micron and sub-micron range, so improvements in resolution are required to detect such diseases.

There are two variants of OCT techniques depending on the detection system: Time-domain (TDOCT) and Frequency-domain (FDOCT). TDOCT was proposed by Huang et al. in 1991 [1] and is based on a scanning optical delay line (mechanical displacement of a reference arm). FDOCT provides significant improvement of imaging speed and detection sensitivity as compared to TDOCT [2, 3]. FDOCT is based on analyzing a signal caused by interference of light beams and can be performed in two ways: The first technique is called Spectral OCT (SOCT) where a light source with broad spectral bandwidth (~100 nm) is used in combination with a spectrometer and a line or array of photo-sensitive detectors [4, 5].

SOCT instruments achieve a speed up to 50 k Ascans/s and an axial resolution as high as 2 μm in tissue [6, 7].

The second technique is called Swept source OCT (SSOCT) where a tunable laser is used in conjunction with a photodetector [8, 9]. This second method usually operates at speeds comparable to SOCT employing a rapidly tunable laser [10, 11].

The axial resolution of most SS-OCT systems is on the order of 10 μm in tissue and doesn’t match high resolution SOCT systems. Due to the high imaging speed, FDOCT systems enable the acquisition of three dimensional image data in-vivo which is especially beneficial for numerous ophthalmic imaging applications [12].

Despite its superiority over TD-OCT, FD-OCT implementation exhibit drawbacks in terms of autocorrelation noise artifacts, which obscure details of the image and degrade the system sensitivity. The autocorrelation terms arise from the interference occurring between different sample reflectors within the target. Jun Ai, proposed the elimination of autocorrelation noise through asynchronous acquisition of two interferograms using an optical switch and attaining an axial resolution of 15 μm in air [13].

FD-OCT bases itself upon low coherence interferometry. Optical Coherence interferometry combines two or more light waves in an optical instrument in such a way that interference occurs between them.

As shown in Fig. 1; Michelson interferometer, the single incoming beam of coherent light will be split into two identical beams by a beam splitter. Each of these beams will travel a different path, and then the reflected beams from the two paths are recombined at the beam splitter before arriving at a detector (a spectrometer). The difference in the distance traveled by each beam, path difference, creates a phase difference between them. This phase difference is what creates the interference pattern between the initially identical waves.

Fig. 1
figure 1

FD-OCT system based on a Michelson interferometer

The OCT main concept is the same as the simple Michelson interferometer but by replacing one of its mirrors by the sample under investigation. Axial (depth) resolution is inversely proportional to light bandwidth and is given by;

$$ \Delta \mathrm{L}=\frac{2 \ln \kern0.5em (2)}{\pi }\ \frac{\uplambda {\mathrm{o}}^2}{\Delta \lambda } $$

Where λo is the central wavelength of the light and Δλ is its spectral full width at half maximum (FWHM). Thus, if we increase BW of light used (using a source of shorter coherence length), we can increase axial resolution. The advantage of increased resolution is lost by the autocorrelation noise that covers required signals of the sample structure.

In this paper we present a novel implementation of a common path OCT setup that is free from autocorrelation noise signals that may overlap the desired image of the object layers. This is achieved through establishing a laser cavity composed of a semiconductor optical amplifier SOA, a 90:10 fiber coupler, and two mirrors at the two ends. One mirror has a reflection coefficient of 99.9 % and is attained by coating the fiber end with a multilayered structure. The other mirror is simply a cleaved fiber end facing the sample under test at a very small distance. The output from this low finesse and low quality factor laser cavity represents the measured interferogram. The Fast Fourier Transform of the obtained interferogram gives the detailed structure of the sample layers. The obtained axial resolution, due to the absence of undesired signals, shows an enhancement over the OCT technique employing a wide band source. The reduction in autocorrelation noise is attributed to amplified multiple reflections between the laser cavity high reflection mirror and the sample layers.


Experimental setup of a resonant OCT

Figure 2 shows the structure of ROCT system. The optical cavity consists of the semiconductor optical amplifier SOA operating around 1300 nm acting as a gain medium and connected by single mode fiber patch chords to a 90:10 fiber coupler and the cavity is ended from one side by a coated fiber and the other side by a cleaved fiber end adjusted very near to the sample under test. The 10 % output from the directional coupler is connected to an Agilent optical spectrum analyzer which is interfaced to a computer through a GPIB cable (General Purpose Interface Bus) where an algorithm performs data manipulation, and FFT (Fast Fourier Transform) to obtain the final results. To test the proposed idea we have chosen a well-known sample structure in advance. The sample under test is a glass microscope slide held close to fiber tip. The glass sheet or slide was about 1.1 mm in thickness.

Fig. 2
figure 2

Experimental setup used to examine the proposed Resonant Optical Coherence Tomography ROCT technique

Modeling of the system

The main laser cavity of the actual setup, of length l1, consists of a coated fiber end with reflectivity r1, a semiconductor optical amplifier SOA, and a cleaved fiber end with reflectivity r2. The extended cavity includes the sample under test. Figures 3 and 4 shows the simulation model we used to study the operation of the proposed OCT system. Lasing is not established except between the coated end and the assembly to the right of the SOA (lasing between r3 and r4 for example is not expected). The equivalent complex reflectivity req1 of the sample layers is given as;

Fig. 3
figure 3

Modelled setup

Fig. 4
figure 4

Reduced modelled setup

$$ {r}_{eq1}=\frac{\left({r}_3-{r}_4{e}^{-2i\theta}\right)}{1-{r}_3{r}_4{e}^{-2i\theta }}\kern0.5em \mathrm{with}\kern0.5em \theta =\frac{2\pi n{l}_3}{\lambda } $$

Where r3 and r4 are the reflectivities of the sample surfaces, n is the refractive index of the sample medium, and l3 is the sample thickness. The overall complex reflectivity of the laser cavity right mirror and the sample is given as;

$$ {r}_{eq}=\frac{\left({r}_2-{r}_{eq1}{e}^{-2i{\theta}_1}\right)}{1-{r}_2\kern0.5em {r}_{eq1}{e}^{-2i{\theta}_1}}\kern0.5em \mathrm{with}\kern0.5em {\theta}_1=\frac{2\pi {l}_2}{\lambda } $$

Where l2 is the distance between the cavity right mirror and the first surface of the sample.

The SOA gain per unit length is modeled using the following equations;

$$ g\left(\lambda \right)={g}_{\max }{\mathit{\mathsf{e}}}^{-\mathsf{2}{\left[\frac{\left(\lambda -{\lambda}_{\mathit{\mathsf{c}}}\right)}{\Delta \lambda}\right]}^{\mathsf{2}}} $$


$$ {g}_{max}=\frac{1}{L_a} ln\frac{1}{\sqrt{r_1}} $$

where Δλ is the gain bandwidth of the used SOA, La is the SOA length and λc is the central wavelength. Gain saturation of the used SOA limits the laser output power to a safe level according to the tissues studied. req represents the signal reflected from the sample under test including the reference signal. req is the measured signal in the case of ordinary OCT systems. The active optical cavity containing the semiconductor optical amplifier “SOA” is assumed of length “l1”. The output of this cavity is given as;

$$ \frac{r_1-{r}_{eq}{e}^{j\varnothing }{e}^{g{L}_a}}{1-{r}_1{r}_{eq}{e}^{j\varnothing }{e}^{g{L}_a}}\kern0.5em \mathrm{with}\kern0.5em \varnothing =\frac{2\pi n}{\lambda }{l}_1 $$

Signals reflected of sample layers undergo multiple round trips inside the laser cavity. Repeated amplification of these signals play a major role in reducing autocorrelation noise as we will show.

Results and Discussions

Simulation results

The simulation is carried out for a sample of thickness 2 mm held at 0.2 mm from the cavity right mirror. The reflectivities of the two surfaces r3 = 0.05, r4 = 0.01. Figure 5 shows the FFT of the laser output spectrum. The sample layers displayed as a result of this study are referred to the main cavity right mirror position, therefore the main cavity length l1 will not affect the results and is not shown in Fig. 5. We notice in Fig. 5 three peaks, the second peak represents the sample first layer positioned at 0.2 mm and the third peak represents the sample second surface positioned at 2.2 mm. The autocorrelation noise signal appears much attenuated at 2 mm.

Fig. 5
figure 5

The layers positions of the studied sample with their reflectivities in arbitrary units

Experimental results of ROCT vs. OCT

In what follows we show the results of our proposed experimental setup compared to the same results obtained using a conventional common path FD-OCT. The studied sample is a glass microscope slide of thickness 1.1 mm approximately. Figure 6 shows the interferogram obtained by a conventional Common Path FD-OCT system. The light source used is a super luminescent diode with a wavelength spectrum bandwidth of 60 nm centered at 1550 nm. The Agilent Optical Spectrum Analyzer used has a spectral resolution of 0.07 nm. Figure 7 shows the interferogram obtained for the same sample and the same spectrum bandwidth obtained using our proposed setup of Fig. 2. We cannot depict any improvements only by comparing the two interferograms therefore we apply Fast Fourier Transform for both interferograms to attain the detailed layers structure of the studied sample.

Fig. 6
figure 6

The interferogram obtained using common path FD-OCT technique

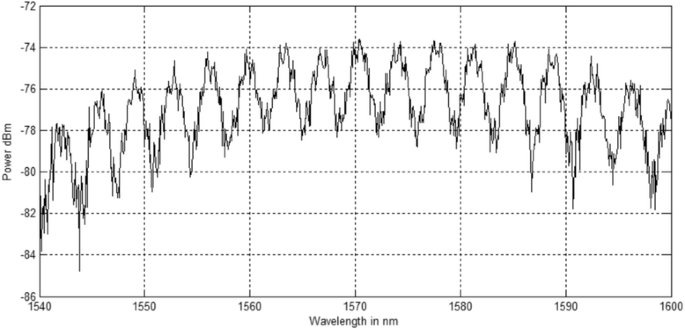

Fig. 7
figure 7

The interferogram obtained using the proposed resonant OCT technique

The Fourier transform of the laser output is given in Fig. 8. Coherence noise term is expected to appear at the position of 1.1 mm (the glass sheet thickness). The signal level at this position is very weak. This emphasizes our expectation of getting a much reduced coherence noise. The same sample is tested with an ordinary OCT setup and Fig. 9 shows the relatively higher level of coherence noise. We notice that, gain saturation increased the level of the weak signal produced by the sample second surface relative to that of the first surface by about 3 dB when compared to ordinary OCT and hence acting against the effect of diffraction. Moreover, amplification of sample reflectivities inside the laser cavity enhances system sensitivity. The overall reduction in autocorrelation noise signal level is nearly 5 dB.

Fig. 8
figure 8

Layers positions of the glass sheet as measured using the ROCT method showing the autocorrelation noise signal highly reduced

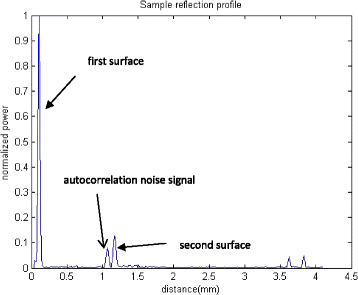

Fig. 9
figure 9

Layers positions of the same sample as Fig. 7a when measured using the OCT method showing the relatively high level of the autocorrelation noise signal


We analyzed and implemented experimentally a resonant common path OCT setup. The new proposed scheme shows an enhancement over the ordinary OCT system where the level of autocorrelation noise signal is greatly reduced. These signals obscure some of the details of the sample under test in ordinary OCT setups. Therefore, this promising result is expected to increase the system axial resolution.


  1. Huang, D, Swanson, EA, Lin, CP, Schuman, JS, Stinson, WG, Chang, W, Hee, MR, Flotte, T, Gregory, K, Puliafito, CA, Fujimoto, JG: Optical coherence tomography. Science 254, 1178–1181 (1991)

    Article  ADS  Google Scholar

  2. Leitgeb, R, Hitzenberger, CK, Fercher, AF: Performance of Fourier domain vs. time domain optical coherence tomography. Opt. Express 11, 889–894 (2003)

    Article  ADS  Google Scholar

  3. de Boer, JF, Cense, B, Park, BH, Pierce, MC, Tearney, GJ, Bouma, BE: Improved signal-to noise ratio in spectral-domain compared with time domain optical coherence tomography. Opt. Lett. 28, 2067–2069 (2003)

    Article  ADS  Google Scholar

  4. Wang, Z, Yuan, Z, Wang, H, Pan, Y: Increasing the imaging depth of spectral-domain OCT by using interpixel shift technique. Opt. Express 14(16), 7014 (2006)

    Article  ADS  Google Scholar

  5. Wojtkowski, M, Leitgeb, R, Kowalczyk, A, Bajraszewski, T, Fercher, AF: In vivo human retinal imaging by Fourier domain optical coherence tomography. J. Biomed. Opt. 7, 457–463 (2002)

    Article  ADS  Google Scholar

  6. Wojtkowski, M, Srinivasan, VJ, Ko, TH, Fujimoto, JG, Kowalczyk, A, Duker, JS: Ultrahigh resolution, high-speed, Fourier domain optical coherence tomography and methods for dispersion compensation. Opt. Express 12, 2404–2422 (2004)

    Article  ADS  Google Scholar

  7. Nassif, NA, et al: In vivo high-resolution video-rate spectral-domain optical coherence tomography of the human retina and optic nerve. Opt. Express 12(3), 367 (2004)

    Article  ADS  MathSciNet  Google Scholar

  8. Chinn, SR, Swanson, EA, Fujimoto, JG: Optical coherence tomography using a frequency tunable optical source. Opt. Lett. 22, 340–342 (1997)

    Article  ADS  Google Scholar

  9. Lexer, F, Hitzenberger, CK, Fercher, AF, Kulhavy, M: Wavelength-tuning interferometry of intraocular distances. Appl. Opt. 36, 6548–6553 (1997)

    Article  ADS  Google Scholar

  10. Choma, MA, Sarunic, MV, Yang, CH, Izatt, JA: Sensitivity advantage of swept source and Fourier domain optical coherence tomography. Opt. Express 11, 2183–2189 (2003)

    Article  ADS  Google Scholar

  11. Yun, SH, Tearney, GJ, de Boer, JF, Bouma, BE: Pulsed-source and swept-source spectral domain optical coherence tomography with reduced motion artifacts. Opt. Express 12, 5614–5624 (2004)

    Article  ADS  Google Scholar

  12. Cense, B, Nassif, NA, Chen, TC, Pierce, MC, Yun, S-H, Park, BH, Bouma, BE, Tearney, GJ, de Boer, JF: Ultrahigh-resolution high-speed retinal imaging using spectral-domain optical coherence tomography. Opt. Express 12, 2435–2447 (2004)

    Article  ADS  Google Scholar

  13. Ai, J, Wang, LV: Spectral-domain optical coherence tomography: Removal of autocorrelation using an optical switch. Appl. Phys. Lett. 88, 111115 (2006)

    Article  ADS  Google Scholar

Download references


The authors would like to thank the Deanship of Scientific Research at Al Imam Mohammad Ibn Saud Islamic University for the financial support of the project: No 351403/1435H, and for the continuous help during this work by providing the space and equipment required to carry out the experimental measurements.

Authors’ contributions

Both authors contributed equally in all the sections of this work.

Competing interests

Both authors contributed equally in all the sections of this work.
