Numerical analysis of temperature-controlled terahertz power splitter

Journal of the European Optical Society-Rapid Publications201713:12

https://doi.org/10.1186/s41476-017-0039-7

©  The Author(s) 2017

  • Received: 15 November 2016
  • Accepted: 31 March 2017
  • Published:

Abstract

Background

As a significant terahertz functional device, terahertz beam splitters with high performance are highly required to meet the need for terahertz communication, terahertz image, and terahertz sensor systems.

Results

The proposed 1×6 power splitter becomes 1×4 power splitter with the aid of the localized temperature change at the frequency of 1.0THz. The total output power is equivalent to 97.8% of the input power for the six-channel splitter and 95.4% for the four-channel splitter. The dimension of the device is of 35a×27a.

Conclusions

A temperature-controlled terahertz power divider based on photonic crystal multimode interference structure and Y-junction photonic crystal waveguides is an efficient mechanism for the power divider of terahertz waves. The proposed device paves a promising way for the realization of terahertz wave integrated device.

Keywords

  • Terahertz wave
  • Tunable power splitter
  • Photonic crystal

Background

With the rapid development of terahertz technology, it becomes very critical and urgent to control the terahertz wave transmission efficiently. Nowadays, to manipulate the terahertz wave propagation has been one of the intensively hot research topics in both science and engineering fields. The devices for manipulation the terahertz wave include such as filters, power dividers, switches, de-multiplexers, absorbers, modulators, and so forth [1–5]. Power splitter is one key component in terahertz wave communication system, therefore, it becomes particularly important to study a terahertz power divider with high performance. In recent years, there have some research reports on the power divider in the literatures [6–12]. For example, in [8], C. Berry et. al. proposed a terahertz beam splitter using sub-wavelength silver grating fabricated on a high-density polymer substrate. In [9], C. Homes et. al. employed a thick silicon wafer as beam splitter for far-infrared and terahertz spectroscopy. In [10], B. Ung et. al. fabricated a terahertz beam-splitter based on low-density polyethylene plastic sheeting coated with a conducting silver layer. In [11] J.Li et. al. designed a terahertz wave polarization beam splitter using a cascaded multimode interference structure. In [12] T. Niu et. al. demonstrated a terahertz beam splitter based on periodic sub-array. For current beam splitters, there still exist some problems, such as large dimensions, the need for multilayer structures, and with non-tunable, etc. As a significant terahertz functional device, terahertz beam splitters with high performance are highly required to meet the need for terahertz communication, terahertz image, and terahertz sensor systems.

In this work, we propose a temperature-controlled multi-channel terahertz wave power splitter based on Y-junction photonic crystal waveguides and multi-mode interference photonic crystal structure (see Fig. 1). Using the localized high-temperature in photonic crystal, we can shift the frequency position of the guide mode in photonic crystal waveguide and efficiently manipulate the output port power of the device. Both the plane wave expansion method and the finite-difference time-domain method are performed to investigate the mode properties and the transmission characteristics of the temperature-controlled terahertz power splitter. Interestingly, our results may pave the way for designing a tunable multi-channel terahertz power splitter using localized temperature-controlled photonic crystal for the thermo-optic effect. Using such a terahertz beam splitter, the whole length of the device is reduced to about 1/10 that of a conventional design [11].
Fig. 1
Fig. 1

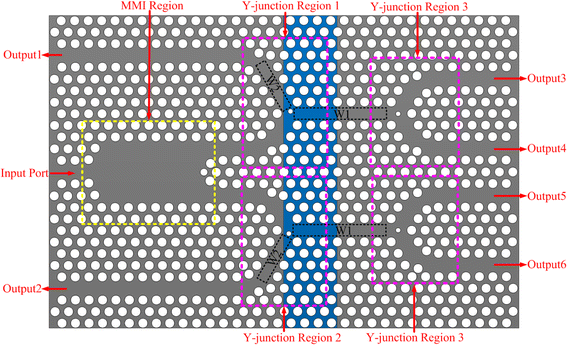

Configuration of the proposed tunable multi-channel terahertz wave power splitter

Device design

The schematic view of the proposed temperature-controlled multi-channel terahertz power splitter is shown in Fig. 1. In this figure, the device consists of four photonic crystals Y-junction waveguides (marked with Y-junction Region 1, Y-junction Region 2, and two Y-junction Region 3), and a multi-mode interference structure (marked with MMI Region). A two-dimensional photonic crystal consists of a triangular lattice array of air holes with the radius of r = 0.32a. The localized high-temperature area in the photonic crystal is marked by using light blue. The background material is high resistivity silicon with refractive index of 3.45 (a is lattice constant of the structure). Here, the loss of the silicon with high resistivity is very weak. In the Y-junction Region 1 and 2, there have two photonic crystal waveguides named with W1 and W2. Both W1 and W2 regions are surrounded by dotted lines. Figure 2 shows the details of the three kinds of photonic crystal Y-junctions region and a MMI region. The photonic crystal Y-junction region has two 60° waveguide bends. In this study, we adjust two air hole’s position shown in light blue air holes (see Fig. 2a, b and c). The air holes with the radius of r = 0.32a are moved oppositely along the symmetric axis of the bend with dx 2 = 0.26a [13]. Furthermore, to overcome the mode-mismatch of the Y-junction, in the middle of the Y-junction region, another air hole is introduced (marked with red), and the radius of the air hole is r = 0.2a. In additional, in Fig. 2a and b, the red air hole are moved along the arrows with dx 1 = 0.3a. To reduce the reflection of the MMI region, we optimize the MMI region by adjusting some air holes as shown in Fig. 2d. The radius of the red air hole with r = 0.25a is moved along the red arrow with dx 4 = 0.3a. Similarly, the blue air holes are moved along the blue arrows with dx 3 = 0.2a. In our design, very importantly, small changes of the guide mode cut-off frequency can cause dramatic change the terahertz output intensity by the partially controlled temperature photonic crystal with thermo-optic effect. The value of the thermo-optic coefficient of silicon photonic crystal estimated from a variety of different studies reported in the literature averaged approximately 2.4 × 10−4°C−1 [14–19]. Then, the refractive index change of the temperature-controlled photonic crystal material is calculated by Δn = (n − n 0) = ΔT × 2.4 × 10− 4 °C− 1. At room temperature (T = 25 °C), the refractive index of the photonic crystal material is n 0 = 3.45. In this letter, to realize the function of temperature-controlled terahertz power splitter, the refractive index change of the photonic crystal is set to be 0.15 (At this time, T = 650 °C.) in the blue photonic crystal region as shown in Fig. 1.
Fig. 2
Fig. 2

Configuration of Y-junction and MMI region, a Y-junction Region 1, bY-junction Region 2, c Y-junction Region 3, d MMI Region

According to the self-imaging principle in MMI waveguides, a self-image will be reproduced at the position of L, which can be calculated by [20]
$$ L= m\left(3{L}_{\pi}\right) $$
(1)
where m denotes the periodic number of imaging along the multi-mode photonic crystal waveguide (m = 0, 1, 2, …), L π is defined as the beat length of the two lowest-order modes which is the position of the two-fold image first emerges and can be expressed by
$$ {L}_{\pi}=\pi \left({\beta}_0-{\beta}_1\right) $$
(2)
where β 0 and β 1 are the propagation constants of the fundamental and the lowest-order even modes, respectively. In the MMI region, the exciting field entering the multimode waveguide is symmetric. Therefore, in our design, only even modes will be excited. To demonstrate the validity of our proposed method, the theoretically calculated L has been checked by numerical simulation according to the two-fold image mechanism.
Figure 3 shows the dispersion curves of MMI region in our presented devices by use of the plane-wave expansion method at room temperature of 25 °C. It can be noted that five guide modes (marked with 0th, 1st, 2nd, 3rd and 4th) can propagate in the MMI region. Note that there is an absolute photonic band-gap within the normalized frequency range from 0.213 (a/λ) to 0.294 (a/λ) (see the blue solid lines). Here, a is lattice constant, λ is the wavelength in free space. According to Eq. (2) and Fig. 3, β 0 and β 1 refer to the 0th and 2nd mode, respectively. Thus, we can obtain the β 0 = 0.48 × 2π/a and β 1 = 0.27 × 2π/a. Substituting β 0 = 0.48 × 2π/a and β 1 = 0.27 × 2π/a into the Eq. (1) with m = 1 (The length of MMI region is set to be the same length of the first self-image), and then we can get L = 3L π = 7.14a. One can see that multiple guided modes exist for almost all the frequencies in the complete photonic band gap, and all of them may operate in the photonic crystal waveguide. Therefore, in this letter, the working frequency point is set to be 0.26 (a/λ) (i.e. f = 1THz), and the lattice constant is a = 78 μm.
Fig. 3
Fig. 3

Dispersion curves for the MMI region and the insert computational super cell

Figure 4 depicts the dispersive relation of the W1 and W2 waveguides for the TM-polarization. The region between the two blue solid lines indicates the complete photonic band-gap, which is for the frequency range of 0.213 (a/λ) ~ 0.294 (a/λ). According to Fig. 4a, for W1 waveguide, one sees that there have a photonic band-gap in the frequency region from 0.263 (a/λ) to 0.267 (a/λ) for TM-polarization mode (see the red shaded region in the Fig. 4a) at 25 °C. When the localized photonic crystal temperature becomes 650 °C, the photonic band-gap in the ranges from 0.253 (a/λ) to 0.256 (a/λ) for TM-polarization mode (see the green shaded region in the Fig. 4a). Since the working frequency range is set to be 0.26 (a/λ) as mentioned above (see the red dash line in the Fig. 4a), the guide mode can propagate in W1 waveguide at the localized photonic crystal temperature with 25 °C and 650 °C. From Fig. 4b, for W2 waveguide, it can be observed that there have a photonic band-gap in the region of 0.263 (a/λ) ~ 0.267 (a/λ) for TM polarization mode at 25 °C. Similarly, when the localized photonic crystal temperature becomes 650 °C, a photonic band-gap changes the frequency region of 0.258 (a/λ) ~ 0.262 (a/λ) for TM-polarization mode (see the green shaded region in the Fig. 4b). In this case, for the working frequency of 0.26 (a/λ) (see the red dash line in the Fig. 4b), the TM polarization mode can propagate through photonic crystal waveguide W2 at the localized temperature of 25 °C while it can not pass through W2 at the localized photonic crystal temperature of 650 °C. Note that the terahertz wave in the presented terahertz beam splitter is controlled by changing of the localized photonic crystal temperature.
Fig. 4
Fig. 4

Dispersion curves of the W1 and W2 waveguides. a W1 waveguide for 25 °C (see left figure) and 650 °C (see right figure). b W2 waveguide for 25 °C (see left figure) and 650 °C (see right figure)

Methods

In order to be more intuitive understanding, a commercial available software module Rsoft FullWave with the finite-difference time-domain method, is employed to simulate the terahertz wave propagation in the proposed device (see Fig. 1). The perfectly matched layers are located around the designed structure as the absorbing boundary condition. The fineness of the finite-difference time-domain cells (i.e. Δx and Δy) are set as 0.05. The Δt coefficient is 0.95 and the total calculation time is 50,000. In order to excite photonic crystal waveguide mode in the device, a continuous wave source is lunched at the input port of the photonic crystal waveguide.

Results and discussions

As the temperature of the blue photonic crystal region is 25 °C, Fig. 5a shows the steady state field distribution. According to the Figure, the terahertz wave transmits through the four Y-junction photonic crystal waveguides and a multi-mode interference photonic crystal structure, finally distributes its energy into six output ports with the equal power. In Fig. 5b, the input terahertz wave is equally distributed in the four output ports, i.e., from output 3 to output 6, when the temperature of the blue photonic crystal region becomes 650 °C. In order to investigate the structure quantitatively, we have also calculated the output power as a function of the working frequency, as shown in Fig. 6. In Fig. 6a, for the six-channel power splitter, the output power of each output port can reach a maximum of 16.5% at 1.0THz, and its corresponding total output power is of 97.8%. At this time, the localized photonic crystal temperature is 25 °C. For the four-channel power splitter, the output power of each output port can reach a maximum of 24.4% at 1.0THz, and its corresponding total output power is of 95.4%, indicated by Fig. 6b. At this time, the localized photonic crystal temperature is 650 °C. The detail output powers of each output port are collected in Table 1. The simulated propagation pattern of electric field agrees well with the theoretical calculated prediction results. The total size of the whole device is of 35a × 27a (i.e. 2.73 × 2.11 mm2), which is about 1/10 that of a conventional design [11]. The wave-guiding loss could be significantly reduced by using crystalline or polymer material featuring low absorption in terahertz region. For instance, the proposed terahertz power splitter could be manufacture from sapphire or high-resistivity silicon using the advanced methods of shaped crystal growth, such as edge-defined film-fed growth (EFG) technique (or Stepanov technique) [21]. Moreover, it could be made of polymers (such as COC, HDPE, or TPX) by implementing drawing [22] or additive manufacturing (2D and 3D printing) principles [23]. Obviously, the geometry of proposed structure should be adjusted for the refractive index of the particular material, and for its temperature-induced changes.
Fig. 5
Fig. 5

Steady state electric field distribution in the proposed terahertz wave power splitter (with f = 1THz) at a 25 °C, b 650 °C

Fig. 6
Fig. 6

Output power of each output port at a 25 °C, b 650 °C

Table 1

Output power of each output port

Temperature

Output power

Output 1

Output 2

Output 3

Output 4

Output 5

Output 6

25 °C

16.5%

16.5%

16.5%

15.9%

15.9%

16.5%

650 °C

1.3%

1.3%

23.3%

24.4%

23.3%

24.4%

Conclusions

To sum up, we have designed a temperature-controlled power splitter based on photonic crystal operating in the terahertz regime. The terahertz wave power splitter was evaluated using plane wave expansion and finite-difference time-domain method. The calculated and simulated results shows that the proposed power splitter constituted by four Y-junctions and a multi-mode interference structure with embedded localized temperature-controlled photonic crystal, which can be tuned by changing the external applied temperature. The numerical simulation results are quite consistent with the analytical predictions. The design proposed here is more amenable to fabrication and also offers greater flexibility in applications of terahertz manipulation devices.

Declarations

Acknowledgments

The authors would like to thank anonymous reviewers for their valuable comments to make the paper suitable for publication.

Funding

This work was supported by the National Natural Science Foundation of China Grant No. 61379024.

Authors’ contributions

YL designed and performed simulations, and analyzed data. JL performed simulations, prepared the finally drafted the manuscript and the revised manuscript. Both authors read and approved the final manuscript.

Competing interests

The authors declare that they have no competing interest.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
Centre for THz Research, China Jiliang University, Hangzhou, 310018, China
