PN-PAM scheme for short range optical transmission over SI-POF — an alternative to Discrete Multi-Tone (DMT) scheme



How to deal with the time-dispersive channel is the main challenge faced by the short-range optical communication systems. In this work a novel pseudo-noise sequence (PN) assisted pulse-amplitude modulated (PN-PAM) transmission scheme for short-range optical communication systems is proposed in this work. With the help of the PN based channel estimation, minimum-phase pre-filter and reduced-state sequence estimation based equalizer, the proposed PAM transmission scheme can significantly reduce the training overhead for channel estimation in the classical PAM systems using decision feedback equalizer (DFE). In addition, the proposed PAM transmission scheme can effectively avoid the error propagation phenomenon in the classical DFE.


Theoretical study shows that the proposed PAM scheme can achieve a 1.5 dB SNR gain with PAM-8 modulation over 50 m step-index polymer optical fiber (SI-POF) channel at a desired BER level of 1×10−3 and 1.2 Gbps transmission rate. Furthermore the hardware experiment using commercially available components proves the improvements in the proposed PAM transmission scheme.


The novel PAM transmission scheme is compared to the optimized discrete multi-tone (DMT) transmission with bit-loading. The experimental results show that for a transmission distance less than 50 m over SI-POF, DMT systems outperform the PAM systems. However, for a SI-POF transmission over the distance longer than 50 m, the proposed scheme can reach a better performance than the DMT systems thanks to the advantage of a lower peak-to-average-power ratio.


Recently, high-speed transmission over plastic optical fiber (POF) has attracted many research interests [1, 2]. POF owns the advantages of easier connection and band insensitive, which could be an economic solution for home networking. However, the available transmission bandwidth in POF is limited due to the significant modal dispersion in large core diameter POF. The intensive modal dispersion could be modeled as multi-path channel delay which causes low-pass channel frequency response [1, 2]. In addition, for different types of short range optical communication systems, such as single-mode fiber (SMF), multi-mode fiber (MMF), and optical wireless with visible light communications (VLC), there have similar channel characteristics as POF’s, which can be modeled as a low-pass frequency response with very high signal-to-noise ratio (SNR) [36]. Therefore, the increasing traffic demands require better bandwidth utilization in the existing short range systems. In the state-of-the-art short range optical transmission systems, the used transmission bandwidth is far wider than the system’s 3 dB bandwidth [36]. In order to explore the best transmission performance in these situations, several advanced modulation schemes have been investigated in recent works [79].

Multi-carrier modulation (MCM) schemes are widely used for the short range optical transmission systems. The discrete multi-tone (DMT) with bit-loading technique can effectively approach the channel capacity. However, MCM schemes have the drawbacks of high peak-to-average-power ratio (PAPR) and computational complexity [9, 10]. Compared to the MCM schemes, single carrier modulation (SCM) schemes enjoy the advantages of computational simplicity and low PAPR. The Not-Return-to-Zero (NRZ) coding with equalization offers satisfactory achievable link power budget margin [8, 9]. The pulse-amplitude modulation (PAM) is another SCM scheme that provides better spectrum efficiency than NRZ coding. As the short range optical transmission systems usually have high SNR, the PAM transmission scheme shows notable advantages over the classical NRZ transmission scheme [8, 11].

However, sophisticated equalization techniques are needed for most SCM schemes in order to restore the distorted SCM signal after the transmission over the bandwidth-limited channels [8]. An equalizer is commonly adopted at the receiver side to equalize the received signal. In addition, the decision-feedback equalizer (DFE) is proved to outperform the feed-forward equalizer (FFE) [12]. Moreover, in case of adaptive equalization, long training sequences are required for good convergence, which consequently reduces the overall system efficiency. Moreover, DFE has the drawback of the error propagation which reduces the system performance in the practical implementations. Although some works show that the Tomlinson-Harashima precoding technique can resolve the error propagation problems in DFE [13], it requires a prior information at transmitter side and increases the overall system complexity [13].

Concerning practical PAM transmissions over SI-POF, [14] and [15] summarized available transmission rates with different SCM schemes, such as 1 Gbps over 20 m SI-POF, 400 Mbps over 50 m SI-POF, and 170 Mbps over 115 m SI-POF in [15] and 10 Mbps over 425 m SI-POF, 100 Mbps over 275 m SI-POF and 1 Gbps over 75 m SI-POF in [14]. Additionally, recent works reported higher transmission rate over 50 m SI-POF with new designed front-end receivers [16, 17]. In this work, we focus on a system architecture research of increasing SI-POF transmission rate with existing off-the-shelf components. In order to improve the transmission efficiency of the PAM transmission and avoid the error propagation problem in DFE, we propose a novel pseudo-noise sequence assisted pulse-amplitude modulated (PN-PAM) transmission scheme for short range optical communication systems. This novel scheme is a SCM in nature and is incorporated with a minimum phase pre-filter and a simplified trellis-based equalizer at the receiver side. The coefficients of minimum phase pre-filter could be obtained from a pseudo noise (PN) sequence-based channel estimation with very short training symbol length. A comparison between the capacities of the novel PAM scheme and the existing DMT scheme over SI-POF is carried out with the same experimental setups. It is shown that this proposed PAM transmission scheme is suitable for other short range optical communication systems due to its advantage of low PAPR.

The remainder of this paper is organized as follows: In “Methods” section, the method of PN-PAM transmission scheme is introduced. In “Theoretical analysis of the PN-PAM transmission” section, a theoretical analysis for PAM transmission over short range step index-POF (SI-POF) system which is modeled as Gaussian low-pass filter. The PAPR of PAM transmission with root-raised-cosine (RRC) filters is also evaluated. In “Numerical analysis of the PN-PAM transmission” section, the proposed PAM transmission scheme is compared with the classical one via simulations. In “Results and discussion” section, a real SI-POF transmission system with commercially available components is used to further prove the merits of the proposed scheme. The comparisons between the PAM and DMT transmissions over practical channels are also presented. Finally, conclusions are highlighted in “Conclusion” section.


In optical fiber communication systems, PAM transmission with adaptive DFE has been widely used. However, as the optical fiber channels are quite stable, it is possible to obtain the optimal DFE coefficients with a reduced transmission overhead. Furthermore, as DFE has the drawback of the error propagation, it is necessary to introduce a novel decision mechanism to replace the direct decision in DFE. In this section we propose a novel PAM transmission scheme for optical fiber communications. To achieve satisfactory performance, the reception of this novel scheme includes three main components: the PN sequence based channel estimator, a minimum-phase receiver filter, and a reduced-state sequence estimation(RSSE) based equalizer. More details of the proposed scheme is presented in following part of the section.

PN sequence based channel estimation

The SCM based transmissions enjoy the advantage of low PAPR over MCM ones and are therefore attractive for optical fiber transmissions. In the meantime they normally require high channel estimation accuracy in order to prevent the error propagation phenomenon in the reception. The PN sequence-based channel estimation was known for its merits of low complexity and high accuracy in wireless communication scenarios [18]. It was recently proved to be very efficient for in DMT transmission over optical fiber [19]. This motivates us to investigate the application of PN sequence based channel estimation for SCM-based optical fiber transmissions.

In classical PAM systems, the transmitted symbols are expressed as:

$$ \begin{aligned} \bar{S}_{\text{PAM}}&=\left[\bar{S}_{\mathrm{T}},\bar{S}_{\mathrm{D}}\right]^{T}=\left[S_{\mathrm{T}}(0), \cdots S_{\mathrm{T}}\left(N_{\mathrm{T}}-1\right),S_{\mathrm{D}}(0), \cdots\right.\\&\qquad\qquad\qquad\quad\left.S_{\mathrm{D}}(N_{\mathrm{D}}-1)\right]^{T}, \end{aligned} $$

where \(\bar {S}_{\mathrm {T}}\) is the length- N T vector of training symbols for the equalizer; \(\bar {S}_{\mathrm {D}}\) is the length- N D vector of PAM data symbols.

When the PN sequence is inserted to the PAM symbols to assist the channel estimation, the transmitted PN-PAM symbols are written as:

$$ \begin{aligned} \bar{S}_{\mathrm{PN-PAM}}=\left[\bar{\rho}_{\text{PN}},\bar{S}_{\mathrm{D}}\right]^{T}&=\left[\rho_{\text{PN}}(0),\cdots \rho_{\text{PN}}\left(N_{\text{PN}}-1\right),\right.\\ &\left.\quad S_{\mathrm{D}}(0),\cdots S_{\mathrm{D}}\left(N_{\mathrm{D}}-1\right)\right]^{T}, \end{aligned} $$

where \(\bar {\rho }_{\text {PN}}\) is the vector of PN sequence for channel estimation. The length of \(\bar {\rho }_{\text {PN}}\) is N PN.

At the receiver side, the received PN sequence is used to perform channel estimation. The PN sequence based channel estimation for optical communications has been initially introduced in [19]. The m-sequences are selected as the PN sequences for channel estimations due to their ease of generation and their associated low complexity. The most significant benefit of using m-sequence for channel estimation is its special circular autocorrelation property. The circular autocorrelation of the m-sequence is known as:

$$ \text{CR}_{j}=\frac{1}{N_{\text{PN}}}\sum_{i=0}^{N_{\text{PN}}-1}m_{i}m^{*}_{[i+j]_{N_{\text{PN}}}}= \left\{ \begin{array}{cl} 1 &j=0\\ -\frac{1}{N_{\text{PN}}} &else\\ \end{array}\right. $$

where m is the m-sequence, (·) is the complex conjugate, \(\left [\cdot \right ]_{N_{\text {PN}}}\) denotes modulo- N PN operation. With the help of circular autocorrelation property shown in (3), the channel estimation can be simply obtained by performing time domain correlation of known and received PN sequences:

$$ \widetilde{\bar{h}}=\frac{1}{N_{\text{PN}}}\sum_{i=0}^{N_{\text{PN}}-1}\left(\sum_{l=0}^{N_{\mathrm{H}}-1}h_{l}\rho_{i-l}+w_{i}\right)\cdot m^{*}_{[i+j]_{N_{\text{PN}}}} $$

where w is the noise, N H is the channel length. In POF channel model, the massive multi-path delay could be modeled as discrete filter taps. Therefore, the maximal channel multi-path delay in real POF channel could be denoted by channel length N H with number of filter taps.

Finally, the accurate estimate of the channel impulse response (CIR) \(\widetilde {\bar {h}}=[\widetilde {h}_{0},\widetilde {h}_{1},\cdots \widetilde {h}_{N_{\mathrm {H}}-1}]^{T}\) can be easily obtained at a very low complexity cost [20]. According to the analysis carried out in [19], the overall complexity of the PN sequence-based channel estimation is \(\mathcal {O}(N_{\text {PN}}\cdot \log N_{\text {PN}})\), which is determined by the PN sequence length.

Minimum-phase pre-filtering

In communication systems, trellis-based equalizer can effectively eliminate the inter-symbol interference (ISI) after transmission over the channel. The maximum-likelihood sequence estimation (MLSE) is recognized as the optimal equalization algorithm in the sense of sequence detection. As the decision is based on a sequence of symbols, it can effectively avoid the error propagation problem of DFE. However, it is worth noting that for PAM with high orders modulations, the computational complexity of MLSE equalizer dramatically increases. The full MLSE equalizer becomes computationally prohibitive when the modulation order is high and/or when the channel length is long. To avoid the prohibitive complexity, a sub-optimal trellis-search based equalizer, namely RSSE, is commonly used for its simplicity in the hardware implementation.

Studies in [21, 22] show that, in order to obtain the sub-optimal performance after trellis-based equalization, discrete time minimum-phase overall impulse response needs to be carried out previously. We employ an FFE pre-filter to achieve the minimum-phase overall impulse response. As an accurate CIR is obtained directly from the PN sequence-based channel estimation, it is feasible to calculate the filter coefficients from the estimated CIR. The coefficients of the pre-filter can be calculated in closed-form from the estimated CIR \(\widetilde {\bar {h}}\).

In [22], the coefficients of the minimum-phase pre-filter are calculated by the linear prediction from the estimated CIR. The linear prediction is realized by the well-known Levinson-Durbin algorithms. Concretely, the pre-filter is determined as follows:

$$ \widetilde{F}(z)=z^{-N_{\mathrm{H}}}H^{\ast}\left(1/z^{\ast}\right)(1-P(z)), $$

where H (1/z ) is the time-reversed conjugated CIR, (1−P(z)) is the calculated linear prediction filter, \(\phantom {\dot {i}\!}z^{-N_{\mathrm {H}}}\) introduces a delay of N H samples.

The analysis of this minimum-phase pre-filter calculation shows that the overall computational complexity of linear prediction method is significantly lower than that of the minimum mean-squared error (MMSE)-DFE method [22].

RSSE based equalization

In contrast to the MLSE equalizer where all possible combinations of symbol sequences are compared with received signal sequence, RSSE dramatically reduces the number of candidates to be compared by applying constellation partitioning and decision-feedback with early decisions [23]. With a proper choice of the number of survivor states, the RSSE based equalizer can approach the optimal performance offered by the MLSE equalizer.

More concretely, the entire symbol alphabet is divided into subsets, and the search trellis is built based on these subsets. The subsets need to be chosen such that the Euclidean distance of symbols within each subset is maximized. Once the survival path is determined, the hard decision within the subset is made directly so that only one survival candidate is reserved in each set, while others are simply discarded for the following search. The selection among subsets is not taken in the current step. Therefore, the number of overall trellis states involved in the search is reduced to \(Z=\prod ^{N_{\mathrm {C}}}_{k=1}J_{k}\), where J k is the number of subsets preserved for the symbol k steps before the currently detecting symbol, N C is the constraint length which is chosen according to the number of significant channel paths, and can be less than the overall channel length N H. It is worth noting that through the choice of J k , the performance and complexity of RSSE equalizer can achieve arbitrary trade-off between the optimal MLSE equalizer and the simple DFE equalizer [22]. For example, when J k =M, 1≤kN C, the RSSE equalizer becomes the MLSE equalizer for PAM-M modulation. Similarly, when J k =1, 1≤kN C, since there is only one subset preserved for decision, the RSSE equalizer is turned into a DFE equalizer.

Theoretical analysis of the PN-PAM transmission

Gaussian low-pass filter channel model

In most short range optical transmission systems, the channels show similar features such as a low-pass frequency response and very good channel condition (very high SNR) at low frequency part [35]. The Gaussian low-pass filter channel model has been proved to be suitable for the POF systems [24]. In this section, it will be used to model a 50-m SI-POF system for the theoretical investigation of the proposed PN-PAM transmission.

The channel frequency response (CFR) of the Gaussian low-pass filter channel model is written as:

$$ H(f)=A\cdot \exp\left[{-\left(\frac{f}{f_{0}}\right)^{2}}\right],\quad f_{0}=\frac{f_{\mathrm{3dB}}}{\sqrt{\ln(2)}}, $$

where H(f) is the CFR at f Hz; A is the optical fiber loss; f 3dB is the 3 dB bandwidth of the considered 50-m SI-POF system.

PAM transmission over Gaussian low-pass filter channel

Using the Gaussian low-pass filter channel model introduced in (6), we can theoretically analyze the PAM transmission over a 50-m SI-POF with different equalizers. It is well known that in additive white Gaussian noise (AWGN) channel, channel capacity is calculated as:

$$ C=W \cdot \log_{2}\left(1+\frac{P}{N_{0}W}\right), $$

where W is the used bandwidth, P is the signal power, N 0 is the power spectral density of the noise. When signal is transmitted over a multi-path channel, ISI will be introduced among consecutive symbols due to the time dispersion of signal. At the receiver side, noise can be boosted after the equalization depending on the equivalent SNR over the whole signal band. Therefore, the performance of the PAM system can be determined through the corresponding SNR after equalization [25]. Based on the post-equalization SNR, we can derive the achievable rate of the PN-PAM transmission in the Gaussian low-pass filter channel.

As the RSSE equalization used in the proposed scheme is a non-linear process, it is difficult to derive the capacity of the proposed PN-PAM scheme in a straightforward manner. Alternatively, we analytically investigate the PAM transmission system using DFE which is an extreme case of the RSSE equalizer. For PAM transmission system using DFE, we assume that no incorrect decision is fed back. Following the results given in [25], the post-equalization SNR of PN-PAM transmission system is written as:

$$ SNR_{\text{DFE}}=\frac{1-\xi_{\text{DFE}}}{\xi_{\text{DFE}}}, $$


$$ \xi_{\text{DFE}}=\exp\left[\frac{T}{2\pi}\int_{-\pi/T}^{\pi/T}\ln\frac{N_{0}}{H\left(e^{j\omega T}+N_{0}\right)}d\omega\right]. $$

The integral in the expression of ξ DFE in (9) can be mathematically approximated by discrete summation. Employing (6), ξ DFE is estimated by:

$$ \begin{aligned} \xi_{\text{DFE}}\approx \exp\left[\frac{1}{N_{p}}\sum_{i=1}^{N_{p}}\ln\frac{N_{0}\cdot N_{p}}{A\cdot \exp\left[-\left(\frac{i\cdot \Delta f}{\sqrt{\ln(2)}\cdot f_{\mathrm{3dB}}}\right)^{2}\right]+N_{0}\cdot N_{p}}\right], \end{aligned} $$

where Δ f is the frequency spacing of the discrete calculation; N p is the number of intervals in order to approximate the integral function. The bandwidth of the PAM system is therefore W PAM=Δ f·N p . The normalized noise energy within the Δ f frequency spacing is N 0.

We assume that the Nyquist bandwidth (1/2T) is used. Introducing the post-equalization SNR in (8) and the channel capacity in (7), we can obtain the capacity of PAM transmission with DFE equalization:

$$ C=2\cdot W_{\text{PAM}} \cdot \log_{2}\left(1+SNR_{\text{DFE}}\right). $$

Introducing the linear approximation method proposed in [26], we can compute the achievable PAM modulation order b as:

$$ b=\frac{SNR(\text{dB})-A_{2}}{A_{1}}, $$

where A 1 and A 2 are coefficients defined in the linear approximation. The exact values of A 1 and A 2 for PAM modulation can be obtained by following similar manipulations as in [26] for different desired BER levels. The obtained A 1 and A 2 are listed in Table 1.

Table 1 Parameters for the relationship between SNR and available PAM modulation order with different desired BER

Applying (11) and (12), the available transmission rate can be calculated as:

$$ R_{s}=2\cdot W_{\text{PAM}}\cdot \frac{10\cdot \log_{10}\left(\frac{1-\xi_{\text{DFE}}}{\xi_{\text{DFE}}}\right)-A_{2}}{A_{1}}. $$

Take the 50-m SI-POF transmission system as an example, where the channel model parameters are the same as in [26]. We can get that f 3dB is 90 MHz and the measured noise power spectral density is −113.7 dBm/Hz. We numerically calculate the PAM transmission rate with the frequency spacing Δ f of 1 MHz and number of intervals N p equal to 1000. With a target BER of 1×10−3 (a level that the residual error can be effectively corrected by channel coding), the relationship between PAM transmission rate and used bandwidth is depicted in Fig. 1.

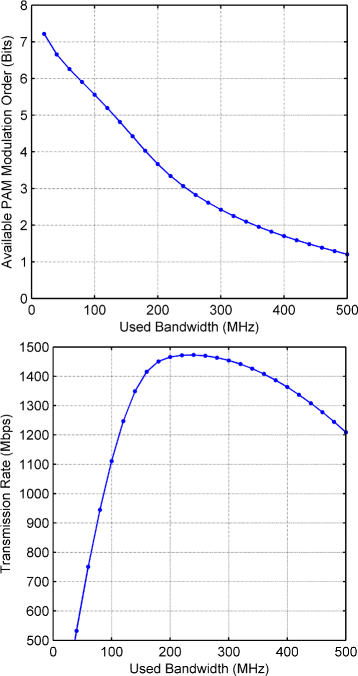

Fig. 1
figure 1

Comparison of PAM modulation order (upper) and transmission rate (lower) with different used bandwidths

As shown in the figure, the narrower bandwidth, the higher PAM modulation orders. However, concerning transmission rate, there is an optimized used bandwidth and PAM modulation order. For instance, in our POF system model, the optimal used bandwidth in Fig. 1 b is around 220 MHz. The achievable PAM modulation order with this bandwidth is PAM-8 accordingly in Fig. 1 a.

RRC filters for PAM transmissions

In practical communication systems, the square RRC filters are normally used at the transmitter and receiver in order to reduce the required bandwidth for the transmission. For the RRC filters, a roll-off factor β is a measure of the excess bandwidth of the filter, which represents the bandwidth occupied beyond the Nyquist bandwidth of 1/2T. β can be chosen between 0 and 1. Therefore in a practical system, the real required bandwidth W PAM is denoted as:

$$ W_{\text{PAM}}=\frac{1}{2}R_{s}(1+\beta), $$

where R s is the PAM symbol rate.

In a pure PAM system without the RRC filter, the PAPR is directly related to the PAM modulation order. However, the use of RRC filter at the transmitter will increase the PAPR with a reduced excess bandwidth or increased filter length [27]. The relationship between the PAPR of the QAM modulation and the RRC filter roll-off factor was studied for PAM-2 and QAM-32 in [27]. Here we investigate the relationship between β and PAPR for PAM-2, PAM-4, PAM-8, PAM-16, and PAM-32. The maximal PAPR of the PAM signal after the RRC filtering is evaluated by the following equation:

$$ \text{PAPR}_{\text{max}}=10\cdot \log_{10}\left(\frac{x_{\text{max}}^{2}}{\mathbb{E}[x^{2}]}\right), $$

where x max is the maximal amplitude of the PAM-M signal. \(\mathbb {E}[x^{2}]\) is the average power of the generated signal. The measured results with a RRC filter length of 8 taps are presented in Fig. 2. From the figure, we can find that the PAPR of the PAM modulated signal after RRC filtering significantly increases when the roll-off factor is lower than 0.4. The PAPR of the PAM-2, PAM-4 and PAM-8 with a RRC filter roll-off factor of 0.2 is obtained around 4.3, 6.9 and 8.0 dB, respectively.

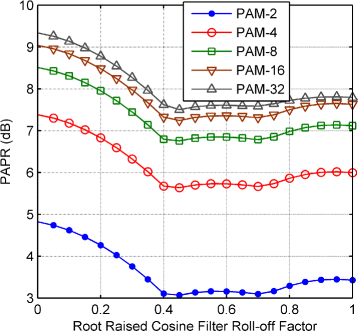

Fig. 2
figure 2

Relationship between the PAM modulation order and RRC filter roll-off factor

Numerical analysis of the PN-PAM transmission

In this section, we simulate the PN-PAM transmission over the 50-m SI-POF system. The modulation is chosen to be PAM-8 which has been shown to be the best modulation scheme for the given channel condition. The symbol rate is set to be 440 Mega symbols per second. Therefore the theoretically minimal required bandwidth is 220 MHz when roff-off factor in RRC filter is assumed at 0. In the practical simulation system, we use a square RRC transceiver filter to reduce the used bandwidth of the PAM transmissions. The roll-off factor is set to be 0.2. Therefore, the actual used bandwidth in simulations is 264 MHz. The estimated SNR with the noise PSD of −113.7 dBm/Hz is about 29.5 dB.

PN-PAM transmission with different equalization methods

Firstly, in Fig. 3, we present the simulation results of PAM-8 transmission over the 50-m SI-POF channel with different equalization methods. For the classical adaptive DFE equalizations, two typical algorithms referred to as recursive least square (RLS) and least mean square (LMS) are adopted. In genie-aided mode, we initially transmit 10,000 training symbols to get the DFE coefficients and subsequently using the known symbols as the decided symbols for the DFE feedback. Alternatively, in direct-decision mode, we use decided symbols for the DFE feedback. In both cases, the number of decision feedback taps is 6 and the number of FFE taps is 24. The simulation results show that DFE-RLS and DFE-LMS provide similar performance in the 50-m SI-POF system with PAM-8 transmission. However, in both DFE-RLS and DFE-LMS schemes, due to the error propagation in direct-decision mode, there is an approximate 1.5 dB degradation at the BER level of 1×10−3 compared to the genie-aided mode. Therefore it is crucial to avoid the error propagation problem in the practical systems.

Fig. 3
figure 3

Illustration of multi-path CIR in Gaussian low-pass filter channel model (upper) and after pre-ltering (lower)

Then we simulate the proposed PN-PAM transmission scheme with RSSE. The PN sequence length for channel estimation is set to be 255 symbols and a cyclic-prefix with the length of 33 symbols is added to the PN sequence in order to prevent the ISI from previous transmitted symbols. The length of the estimated CIR is 7 taps. The first 6 most significant taps are used to calculate the minimum-phase pre-filter. An illustration of the multi-path CIR in original Gaussian low-pass filter channel model and after pre-filtering is presented in Fig. 4. As shown in the figure, a main path is recovered at the first tap after pre-filtering. Then the most significant multi-path component is located at the second tap, which owns an amplitude about 0.86. Therefore, we design and compare two RSSE structures in 50-m POF transmissions. The first RSSE structure uses the first 2 most significant delay taps for symbols decision. Hence the length of the RSSE trellis is selected to 2. The number of subsets for the first delay tap J 1 is set to 2 and the number of subsets for the second delay tap J 2 is set to 1. The second RSSE structure uses all of the 5 delay taps for symbols decision. For each delay tap, the number of subsets J k is set to 1. In the second RSSE structure, as each delay tap only has one subset, the RSSE equalizer turns into a DFE equalizer with 5 taps. Obviously, for both of the RSSE structure, the overall complexity is very low.

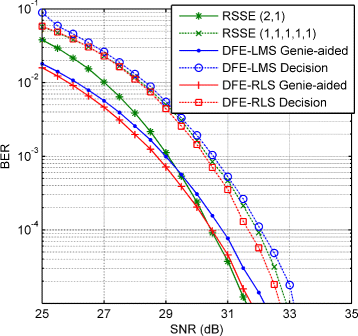

Fig. 4
figure 4

Simulation results of the PAM transmission over 50 meters SI-POF with different equalization methods

After simulations of the transmission over 50-m SI-POF channel, performances of RSSE equalizers are depicted in Fig. 3. As been shown in the figure, the RSSE (2,1) equalizer can achieve similar performance to classical DFE equalizers in genie-aided mode, which has 1.5 dB improvement with the practical DFE equalizers in direct-decision mode. Additionally, the RSSE (1,1,1,1,1) equalizer has a very close performance to classical DFE equalizers. Therefore, it is clear that in the 50-m SI-POF channel, using RSSE (2,1) equalizer can solve the error propagation problem in classical DFE equalizers.

PAM transmission with respect to different training sequence lengths

In addition, as mentioned in “Methods” section, the novel PAM transmission scheme leads to an improved transmission efficiency. The training sequence takes up a certain amount of transmission energy and hence reduces the overall system efficiency. For the classical DFE-RLS and DFE-LMS equalizers, the predefined training sequence is inserted before the data symbols. The equalizers work in training mode when the training symbols are received and then switch to the equalization mode when data symbols are received. In equalization mode, there are two feed-back methods. In general transmissions, the feed-back bits are obtained from decisions, which is called as direct-decision mode. However, in this mode, decision error will be propagated and cause penalties. Besides, it is also possible to use known pilot bits as the feed-back bits. In this mode, error propagation could be avoided due to the known pilot bits at receiver. This mode is called as genie-aided mode. In practical system, the known pilot bits cannot be used to transmit message. Therefore, the genie-aided mode is only used to theoretical optimal performance evaluations.

For the proposed scheme, the training sequence is the PN sequence inserted before the data symbols. We simulate the PAM-8 transmission over the 50-m SI-POF channel with different training sequence lengths for both classical DFE and the proposed scheme. The SNR is fixed to 29.5 dB. The BER performance is depicted in Fig. 5.

Fig. 5
figure 5

Simulation results of the PN-PAM transmission over 50-m SI-POF with different training sequence lengths

With a PN sequence length longer than 255 symbols, the proposed system achieves the best BER performance of around 4.6×10−4. However, the classical DFE based equalizers require much longer training sequences. Simulation results show that even in the genie-aided mode, in order to get converged BER performance, the DFE-RLS requires a training sequence longer than 4096 symbols and the DFE-LMS requires a training sequence longer than 32,768 symbols. Moreover, when DFE works in direct-decision mode, even extremely long training sequence is adopted, they can only reach the best BER performance of around 2.0×10−3.


From simulations shown above, it is obvious that the proposed PN-PAM transmission scheme can achieve higher system efficiency. The improvement comes from two aspects. On the one hand, the PN-based channel estimation requires very little training overhead, roughly 0.01 to 0.05 compared to the classical DFE schemes. On the other hand, the RSSE equalization leads to an improved BER performance with the help of the reduced error propagation compared to classical DFE schemes.

Results and discussion

In order to verify the proposed PAM transmission schemes, we setup a practical system for experimental comparisons. We also compared PAM transmissions to DMT transmissions with different POF lengths.

Experimental system setups

In contrast to most experimental POF transmission systems, we use a commercially available digital to analog convertor (DAC) and analog to digital convertor (ADC). Both DAC and ADC are provided from Texas Instruments. The DAC (DAC5681) has 1 Giga samples per second sampling rate and 16 bits resolution. The ADC (ADC12D1800RFRB) has 1.8 Giga samples per second sampling rate and 12 bits resolution. In order to drive the resonant-cavity light emitting diode (RCLED), we designed an amplifying circuit at the transmitter using a commercially available amplifier (OPA695) also from Texas Instruments. The designed transmission bandwidth is 250 MHz.

At the transmitter, RCLED is provided from Firecomms (FC300R-120) with a 3 dB bandwidth of 100 MHz. The biasing current is 20 mA and the coupled power into the SI-POF is −0.2 dBm. PMMA Φ 1 mm SI-POFs (Eska MEGA) are prepared with different lengths (15, 30, 50, 75 and 100 m). At the receiver, a photodiode combined with a trans-impedance amplifier (FC-1000D-120) is employed to detect the received optical signal. The 3 dB bandwidth of the receiver is 625 MHz. The block diagram of the experimental system is presented in Fig. 6.

Fig. 6
figure 6

Experimental setup

Both the novel PN-PAM transmission scheme and classical PAM transmission scheme is generated off-line in computer. For the novel PN-PAM transmission scheme, the PN length is set to be 255 symbols and for classical PAM transmission scheme, the training sequence length is chosen as 5000 symbols. The roll-off factor of the RRC filter is selected as 0.25. Therefore, PAM symbol rate is set to 400 Mega symbols per second. The total used bandwidth is 400÷2×1.25=250 MHz. As 2 times oversampling is adopted at the transmitter, the DAC sampling rate is 800 Mega samples per second. The ADC works at 1.8 Giga samples per second. At the receiver, for classical PAM transmission with DFE, the number of decision feedback taps is 6 and the number of FFE taps is 24. For the proposed PN-PAM transmission scheme, the first 13 prominent taps in the CIR estimate are used for the calculation of minimum-phase pre-filter. The performance is evaluated with 20 frames, each containing 14,500 symbols. Therefore, in our experimental systems, the overall training overhead is approximately 25.6% for PAM with DFE (5000 training symbols, 14,500 data symbols) and 1.7% for the proposed PAM transmission scheme (255 PN symbols, 14,500 data symbols).

In the meantime, the DMT transmission signals are also generated for the comparison. For the DMT system, we setup the system with the same 250 MHz used bandwidth as the PAM system. The DAC sampling rate is set to 1 Giga samples per second indicating 4 times oversampling. The number of available subcarrier is 512. The first subcarrier is closed to avoid the direct current component. Bit-loading algorithm with linear approximation [26] is employed to allocate bits and power to each subcarrier. The DMT signal is digitally clipped with an optimal clipping ratio of 10 dB. The hybrid pseudo-noise and zero-padding DMT scheme [19] is adopted for its advantages compared to the classical DMT scheme. The PN sequence length is 255 symbols and the ZP length is 32 symbols. The ADC works at 1.8 Giga samples per second. The performance is evaluated with 20 frames, each consisting of 7 DMT symbols.

Experimental results

For the proposed PN-PAM transmission scheme and DMT transmission scheme, we can estimate channel response using the received PN sequence. The estimated CIR of 15, 30, 50, 75 and 100 m SI-POF for the PAM transmissions are presented in Fig. 7. As shown in the figure, the CIRs exhibit significant time dispersion which causes ISI among consecutive symbols. In addition, the system overall non-linearity causes multi-path delay spreading, which is shown as the additional delay path at 9th and 10th taps in Fig. 7. Based on the CIR, we can calculate the coefficients of the minimum-phase pre-filter using (5). The after pre-filtering are presented in Fig. 8. As we can see from the figure, the normalized impulse responses have significantly reduced the pre-interference before the main path. This is essential for the subsequent DFE or RSSE equalizations.

Fig. 7
figure 7

Channel impulse response of 15, 30, 50, 75 and 100 m SI-POF transmission

Fig. 8
figure 8

Normalized impulse responses of 15, 30, 50, 75 and 100 m SI-POF transmission after pre-filtering

According to the channel conditions, we evaluate several PAM modulations for each transmission length. Both classical PAM with DFE scheme and the proposed PN-PAM transmission scheme are tested. The comparison of the BER performances is presented in Fig. 9. In addition, the BER performance of PAM-4 transmission over 15, 30 and 50 m SI-POF, the PAM-2 transmission over 15, 30, 50, 75 and 100 m SI-POF is measured with error-free (i.e., BER <1×10−6). Therefore, these results are not depicted in Fig. 9. For PAM-8 transmissions, the proposed PN-PAM scheme can achieve the BER performance of around 1×10−3 over 15, 30 and 50 m SI-POF. However, for classical PAM with DFE, the BER performance is only around 1×10−2 with the same conditions. This BER degradation is mainly due to the error propagation when DFE switches to the direct-decision mode after 5000 training symbols. In addition, it is worth noting that in the proposed PAM scheme, the length of the training sequence is only 255 symbols.

Fig. 9
figure 9

Experimental comparisons of PN-PAM and DMT transmission over different length of SI-POFs

In summary, it can be concluded that using the proposed PN-PAM transmission scheme, PAM-8 is suitable for 15, 30 and 50 m SI-POF transmission with a desired BER around 1×10−3. As the symbol rate of the PAM transmission is 400 Mega symbols per second, the total achievable bit rate is 1.2 Gbps. For 75 m SI-POF, PAM-4 is a reasonable choice and 800 Mbps can be achieved. Finally, PAM-2 can support a quasi-error-free transmission (BER <1×10−6) over 100 m SI-POF, which leads to a transmission rate of 400 Mbps.

Comparison and discussion

In this section, we introduce the DMT transmissions for comparisons. In order to implement a fair comparison with the PAM transmissions, we employ bit-loading algorithms and allocate bits for total transmission rates of the DMT system at 1.2 Gbps over 15, 30, and 50 m SI-POF, 800 Mbps over 75 m SI-POF and 400 Mbps over 100 m SI-POF.

The BER performances of DMT are also depicted in Fig. 9 and a summary of experimental results in different transmission schemes with fixed transmission bit rate is presented in Table 2. As shown in the results, we can find that the proposed PN-PAM transmission scheme achieves similar performance to the DMT transmission in the 50-m SI-POF system.

Table 2 Summary of experimental results in different transmission schemes with fixed transmission bit rate

In addition, for the transmission length shorter than 50 m, the DMT systems present better performance. This is mainly due to the fact that for transmission lengths shorter than 50 m, due to the high SNR at receiver, DMT can fully approach the channel capacity with the help of bit-loading. However, when high order PAM modulations are employed for short range communications, the transmitter non-linearity distortion will seriously affect overall performance.

Furthermore, for the transmission lengths longer than 50 m, PN-PAM transmission systems achieve better performance. From the aforementioned PAPR results in Fig. 2, we can find that PAM-2 and PAM-4 present lower PAPR than DMT with 10 dB clipping. Therefore, with the fixed DAC output dynamic range, the PN-PAM-based transmission systems can achieve higher transmitting power and obtain better performance.


In this paper, we introduced a novel PAM transmission scheme for short range optical transmission systems. The novel PN-PAM transmission scheme includes PN sequence-based channel estimation, minimum-phase receiver filter and RSSE based equalizer. A theoretical analysis for the PN-PAM transmission over Gaussian low-pass frequency response channel was also presented. From the theoretical analysis, the PAM-8 modulation is proved to be the best modulation choice for the 50-m SI-POF system.

The simulation results show that, compared to the classical PAM transmission with DFE equalization, the proposed PN-PAM transmission scheme can totally achieve 1.5 dB gain in a 50-m SI-POF system with an affordable complexity increase. Furthermore, simulation results reveal that the proposed PAM scheme requires less than 0.01 to 0.05 cost of system training symbol overhead compared to the classical DFE schemes, and can largely increase overall system efficiency.

Experimental systems with commercially available components are also investigated for both PN-PAM and DMT transmissions with the same used bandwidths. Experimental results show that, for the SI-POF lengths longer than 50 m, the proposed PN-PAM transmission scheme outperforms the classical PAM transmission with DFE equalization as well as the DMT transmissions that has been optimized in a previous work [19]. In the meantime, for the transmission lengths shorter than 50 m, the proposed PN-PAM transmission scheme performs better than the classical PAM with DFE equalization but worse than the DMT transmissions. This degradation can be understood by the fact that in order to achieve the same transmission rate as DMT, the PN-PAM based systems need to employ higher order modulations when the channel condition is good. However, the higher order modulations are more vulnerable to the non-linearity of the SI-POF system.

Therefore, it can be concluded that the proposed PN-PAM transmission scheme outperforms the classical PAM with DFE equalization in terms of both BER performance and overall system throughput. The complexity increase due to the use of RSSE equalizer is also acceptable. For short range optical transmissions with POF length longer than 50 m, the proposed PN-PAM transmission scheme is a better choice than the DMT transmission scheme.



Analog to digital convertor


Additive white Gaussian noise


Channel frequency response


Channel impulse response


Decision feedback equalizer


Digital to analog convertor


Discrete multi-tone


Feed-forward equalizer


Inter-symbol interference


Least mean square


Multi-carrier modulation


Maximum- likelihood sequence estimation


Multi-mode fiber


Minimum mean-squared error




Pulse-amplitude modulated


Peak-to-average-power ratio




Pseudo-noise sequence assisted pulse-amplitude modulated


Resonant-cavity light emitting diode


Recursive least square




Reduced-state sequence estimation


Single carrier modulation


Step-index polymer optical fiber


Single-mode fiber


Signal-to-noise ratio


Visible light communications
