Homogenization with coherent light illuminated beam shaping diffusers for vision applications: spatial resolution limited by speckle pattern

Journal of the European Optical Society-Rapid Publications201814:27

https://doi.org/10.1186/s41476-018-0095-7

  • Received: 23 August 2018
  • Accepted: 16 November 2018
  • Published:

Abstract

Background

Homogenizing properties of beam shaping diffusers illuminated with coherent laser light was studied with special regard on their use in vision applications.

Experimental

Two diffusers projecting circular pattern at different scattering angles (Thorlabs Engineered Diffuser™) were illuminated with different spatial intensity distribution (elliptical Gaussian, nearly flat-top and granular multimode fiber output, respectively) collimated beams.

Results

The intensity distribution measured at high angular resolution with a CMOS sensor revealed the granular (speckle) pattern of the projected light having contrast of nearly 1. The smallest speckle size (highest speckle density) could be obtained at the largest aperture size using nearly flat-top and multimode fiber illumination.

Conclusion

As an important measure of the homogeneity for vision applications the apparent local contrast was calculated as the function of the spatial averaging. Although, the homogeneity requirements depend on the actual application, the usability of such diffusers in combination with coherent light sources is in general strongly limited in megapixel resolution imaging applications, unless time-varying speckle averaging methods can be applied.

Keywords

  • Beam homogenization
  • Beam shaping diffuser
  • Speckle pattern

Introduction

The laser beam shaping and homogenization is of high importance in various industrial, medical and scientific areas, including material processing, interferometric and vision applications, etc. Uniform intensity distribution (flat-top) can be created by various methods, e.g. ordered or random microlens arrays, diffractive optical elements, optical integrator setup [1, 2]. While many of the homogenizing methods perform well with incoherent light sources or low coherence lasers (e.g. excimer lasers), when the incident beam was coherent these methods results in interference or speckle (granular) pattern formation. In laser imaging systems (holography, projector, display, etc.) the speckle effect appears as noise, therefore the speckle reduction is applied to achieve uniform illumination. The speckle suppressing techniques are mainly based on the following two approaches: i) the speckle pattern to be averaged in time and/or space or ii) the illumination to be made spatially and/or temporally partially coherent or non-coherent [3]. The spatial averaging is based on image recording with pixel size (or binning windows) larger than the speckle size or Fourier filtering [4] of the speckle images, while the temporal averaging is based on recording of time-varying speckle patterns [3]. These latter methods are closely related to some of the coherence reduction techniques. The coherence can be reduced by using moving, rotating or vibrating optical elements (e.g. diffusers [57], diffractive optical elements [8], micromirrors [9], multimode fibers or fiber bundles [10]), screen vibration [11], use of broadband lasers [12], multiwavelength illumination (e.g. mode hop of laser diode) [13], etc. There are applications (e.g. laser speckle flowmetry) where the coherence on the illuminated area should be maintained within the frame exposure time, therefore spatial averaging is the only applicable method if the speckle pattern formation cannot be is avoided.

Specially designed optical diffusers having micromachined surfaces covered with pseudorandom structures are available for creation of uniformly illuminated spots of various shapes (linear, circular, rectangular, elliptical, etc.) and scattering angles. Although, the best homogenizing efficiency can be achieved with low coherence light sources, they are often used in combination with coherent light sources [1416].

The influence of the coherent nature of laser light on the homogenizing efficiency is often not emphasized by vendors, as compared to its significance, not to mention the lack of data. In this paper we investigate the homogenizing properties of two beam shapers (Thorlabs Engineered diffuser™) projecting circular spot when illuminated with collimated coherent light beams having different spatial distributions. We focused on the high resolution intensity distribution and the usability of coherent light illuminated diffusers for vision applications.

Experimental

The optical setup

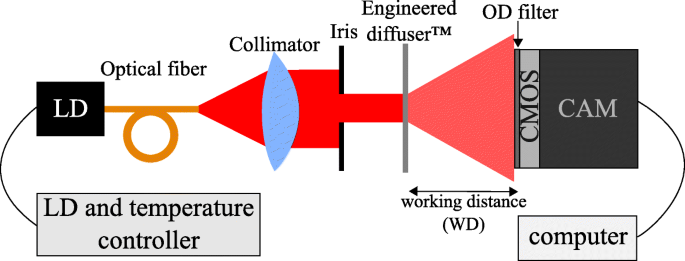

The optical setup used for studying the beam shaping and homogenization property of the diffuser is illustrated in Fig. 1. The collimated laser beam of different spatial distributions fall perpendicularly onto the diffuser (Engineered Diffuser™, Thorlabs ED1-C20 and ED1-C50, circular pattern, 20° and 50° scattering angle, respectively) surface. The diameter (D) of illuminated spot (further referred as beam diameter) on the diffuser could be varied in 3–18 mm range with an iris placed in front of the diffuser. The pattern produced by the diffuser was recorded at different working distances (WD, 25 and 35 cm, respectively) by the sensor of an 8-bit industrial monochrome camera (Pixelink PL-B741F, Cypress IBIS 5B Global Shutter CMOS sensor, resolution 1280 × 1024, 6.7 μm × 6.7 μm pixel size) allowing high resolution imaging of the spatial intensity distribution. The gamma correction was set to 1 to assure the linearity between the light intensity and grayscale level and the camera flat field correction function was set to eliminate the effect of the variation of the pixel-to-pixel sensitivity of the CMOS sensor. Thus, at nearly homogeneous illumination at 50% grayscale level the relative standard deviation of the grayscale values was 1.2%, and induced error in the averaged contrast measurements was about 2%. The readout noise was not higher than ±2 LSB (Least Significant Bit) level at the highest applied exposure time (100 ms), its effect was minimized by averaging consecutively captured images. A neutral density filter was placed in front of the camera to adjust the detected light intensity, while the background (ambient light) was recorded and subtracted from the images.
Fig. 1
Fig. 1

The optical setup used in measurements with optical fiber. A version with direct collimation of the laser output was also used

The light source was a laser diode (λ = 660 nm, 130 mW peak power, Mitsubishi ML101J27) operated in constant current mode (Thorlabs LDC220C), while the temperature was stabilized (Thorlabs TED200C) to avoid the wavelength drift and mode hops. Three types of collimated beams having different spatial distributions were produced: i) elliptical Gaussian profile obtained by collimating the diverging output of the laser as to nearly fill the 18 mm diameter aperture; ii) a nearly flat-top transversal distribution over the area of interest was obtained by expanding the center zone of Gaussian beam profile; and iii) coupling the laser light into a multimode (MM) optical fiber (Thorlabs FT400EMT, NA = 0,39, Ø440 μm core diameter, length 1 m) and collimating the highly diverging output as to produce a multimodal transverse profile on the diffuser.

The recorded images were processed by our software developed in National Instruments LabView environment.

Speckle size/density measurement

The speckle size can be measured by two methods: blob detection and autocovariance calculation. The blob detection is based on the thresholding of grayscale images for transformation into black and white images, where the speckles appear as black (or white, depending on the settings) spots which can be counted and their size measured. The disadvantage of the method is strong influence of the threshold setting onto the measured size, however the method offers a very quick and exact method for the calculation of speckle number or speckle density.

The second method, the autocovariance calculation is based on the speckle statistic. The normalized autocovariance is [17].
$$ c\left(\Delta x,\Delta y\right)=\frac{R\left(\Delta x,\Delta y\right)-{\left\langle I\left(x,y\right)\right\rangle}^2}{\left\langle I{\left(x,y\right)}^2\right\rangle -{\left\langle I\left(x,y\right)\right\rangle}^2} $$
(1)
where R(∆x, ∆y) is the autocorrelation, I(x, y) is the intensity map and 〈 〉 corresponds to the spatial average. The autocorrelation function is defined as [17].
$$ R\left(\Delta x,\Delta y\right)=\left\langle I\left(\mathrm{x},\mathrm{y}\right)I\left(\mathrm{x}+\Delta x,\mathrm{y}+\Delta y\right)\right\rangle $$
(2)

The vertical (‍ ‍ R(∆x, 0) ‍ ‍) and horizontal (R(0, ∆y)) autocorrelation functions have a peak centered at R(0, 0) = 〈I(x, y)2〉which can be fitted with Gaussian function and their FWHM corresponds to the average speckle size. For a circularly symmetric arrangement the speckle size for the vertical and horizontal direction has to be similar. The method gives accurate results for speckle size determination. The disadvantage of the method is the longer calculation time and the difficulty of peak fitting with small error if the speckle size is close to the pixel size.

Inhomogeneity

The uniformity of an intensity distribution in most of the practical applications (e.g. machine vision) is well characterized by contrast or Michelson visibility:
$$ C=\frac{I_{max}-{I}_{min}}{I_{max}+{I}_{min}} $$
(3)
where Imax and Imin are the maximum the minimum local intensities, respectively, within an area of interest, in our case areas much larger than the speckle size. The larger is the contrast, the higher is the visibility of the speckle pattern and the less homogeneous is the intensity distribution. The sensor area was divided in 100 pixel width domains, which are much larger than the speckle size and the local contrasts values measured on the domains were averaged.

Result and discussion

The intensity distributions of the collimated beam on the diffuser surface

The plane of the diffuser was imaged with the camera by adjusting the imaging optics as to eliminate the effect of the subjective speckle. The intensity distributions along the vertical and horizontal axes on the iris plane are shown in Fig. 2. When expanding the center zone of the Gaussian beam (Fig. 2b,e) in vertical direction the profile was nearly flat-top, however there is a larger variation of the intensity along the horizontal direction. In case of the MM fiber illumination multimodal profile with uniformly distributed granular pattern can be seen (Fig. 2.c,e).
Fig. 2
Fig. 2

The laser light intensity distribution in the plane of the diffuser obtained by imaging method (a, b, c) and the corresponding vertical (green) and horizontal (red) profile of the distributions (d, e, f)

Intensity distribution of the light projected by the diffuser

The diffuser projected a circular illuminated spot with an apparently near-homogeneous distribution of about +/− 10% fluctuation in accordance with the distributor’s specifications (Fig. 3.). However, when placing the camera in the monitored projection plane, the higher angular resolution (the angle of view of the pixels from the diffuser was 0.092 and 0.069 arcminutes for the working distances of 25 cm and 35 cm, respectively) revealed the grainy (speckle) pattern of the intensity distribution (Fig. 3.) of all spatial intensity distribution.
Fig. 3
Fig. 3

Typical angular distribution of the intensity (data provided by the distributor) when using C20 diffusers at 638 nm laser wavelength (a) [20] and the local intensity distribution at high angular resolution recorded by the camera at WD = 25 cm and D = 6 mm (b)

Speckle density and size

The speckle densities measured by blob detection at 25 cm working distance are shown in Fig. 4. for the two diffusers illuminated with the different intensity profiles. It can be seen, that while the density increases with increasing the beam diameter, there is practically no dependence on the designed scattering angle of the diffuser. Meantime, the illumination of the diffuser with Gaussian intensity profile results in relatively low speckle density especially at larger beam diameters. At 35 cm WD the tendencies are similar with a multiplying factor of about (35/25)2 in the speckle density values.
Fig. 4
Fig. 4

The speckle densities measured at 25 cm working distance for C20 and C50 as the function of the beam diameter illuminating the diffuser

Figure 5. shows the speckle size obtained by autocovariance measurements and the corresponding view angle from the plane of the C20 diffuser. Some of the measurement points at smaller D valued are missing since the decrease of the scattered light intensity became insufficient in case of MM and flat-top distributions. The C50 diffuser showed similar behavior on the measurement point. The continuous plot is the curve corresponding to the theory derived by Goodman for the far field objective speckle size (d) in case of uniformly illuminated scattering surfaces [18]:
$$ d\cong \frac{\lambda \cdot WD}{D}. $$
(4)
Fig. 5
Fig. 5

The speckle size and corresponding view angle graphs for 25 cm (a) and 35 cm (b) working distances in case of C20 diffuser

While in average there is a nearly inversely proportional decrease when increasing the diameter of the illuminating spot on the diffuser surface, the corresponding speckle sizes were practically similar for the flat-top and MM illuminations and slightly higher for Gaussian beam distribution. This indicates that the quickly decreasing Gaussian intensity distribution results in a smaller effective beam diameter, as compared to the other two illumination profiles. The measured speckle size is always higher than the model prediction, and the discrepancy between the theoretical curve and measured data becomes relatively larger as D increases. It has to be noted that in general the model gives us a reference value, the actual average speckle size is influenced by the statistical amplitude and phase distribution of the scattered light.

Contrast

The average contrast values measured on the sensor area are shown in Fig. 6. for C20 at 25 cm working distance. The maximum contrast is nearly 1, which indicates a total extinction in the dark zones due to the coherence length much higher than the path length difference of the interfering waves. As the illuminated spot size increases the contrast becomes somewhat lower, which can be explained by the spatial averaging (undersampling) of the speckle pattern as the size of the grains decreases [19]. In case of MM illumination there is a more significant jump in the contrast. A plausible explanation is the depolarization of the initially polarized light in the MM optical fiber (up to 10% in our case). The cross polarized light creates its own speckle pattern, and the result is the superposition of two patterns resulting in a decreased average contrast. This was validated by recording the speckle pattern with linear polarizer placed in front of the sensor in two orthogonal directions (↕ and ↔) and verifying the following equality [18].
$$ \frac{\sigma }{\left\langle I\right\rangle }=\frac{\sqrt{\sigma_{\updownarrow}^2+{\sigma}_{\leftrightarrow}^2}}{\left\langle {I}_{\updownarrow}\right\rangle +\left\langle {I}_{\leftrightarrow}\right\rangle }, $$
(5)
where σ is the standard deviation and 〈I〉 is the mean value of the intensity within an area of interest.
Fig. 6
Fig. 6

The contrast measured for C20 at 25 cm working distance as the function of beam diameter

The results show that the illumination of such diffusers with coherent light produces high contrast speckle pattern. For imaging applications one can obtain a relatively homogeneous (low contrast) intensity distribution only with proper spatial averaging of the pattern. As a simulation we applied pixel binning on the recorded images and calculated the average contrast, and intensity histogram as shown in Fig. 7. While the measurements show a large-scale homogeneity corresponding to a contrast of ~ 0.2, a pixel size (binnig size in our case) of about 10× the speckle size will result in a contrast value of ~ 0.3. In such conditions, in case of a flat-top illumination at largest clear aperture on the diffusers (~ 24 mm) the projected spot could be imaged with a lateral resolution along the whole diameter of approximately 750 and 1900 effective pixels for C20 and C50 diffuser, respectively, suggesting the need of the largest scattering angle diffuser for megapixel imaging applications.
Fig. 7
Fig. 7

Simulation of the effect of spatial averaging on the intensity contrast by pixel binning (a) and some representative intensity histograms (b) for C20 diffuser (Gaussian profile, D = 6 mm, WD = 25 cm)

We have to note that if the vision application uses gamma correction (e.g. visual perception), the visible contrast at higher grayscale levels will be smaller than the one calculated above.

Conclusion

The illumination of specially designed homogenizing diffusers with coherent light results in relatively good large-scale homogeneity, however the high resolution imaging reveals the grainy short-scale structure of the intensity distribution. The formed speckle pattern shows high contrast with total extinction in the dark zones, in our measurements the size of the speckles nearly followed the λ·WD/D function, however, the exact values could be up to about 50% higher for high D values. The large speckle size is a significant drawback in vision applications, where proper homogeneity can be obtained only with proper spatial averaging of the speckle pattern, i.e. the lateral resolution of the imaging system should be less, than the speckle size. Although, the actual homogeneity requirements may vary from application to application, a maximum spatial resolution of imaging system corresponding to about 10× the speckle size can be a good approximation. The further increase of the resolution results in drastically deteriorating local (short-scale) homogeneity. This is a considerable limitation of their use in megapixel applications. As the speckle properties are independent of the designed scattering angle of the homogenizing diffuser, it is recommended to use the highest possible scattering angle diffuser, which results in a desired projected spot size in a shorter working distance. The surface of the diffuser should be illuminated at the full clear aperture. Due to the easy and high efficiency light coupling the large core diameter MM optical fibers are often preferred for light guiding. As our results show, without disregarding the above mentioned limitations, such diffusers are also suitable for homogenizing the multimodal output of these optical fibers without the application of temporal averaging homogenizing methods, such as the high frequency vibration of the fibers.

Abbreviations

CMOS:

Complementary Metal-Oxide Semiconductor

D:

Laser beam diameter

d:

Speckle size

I:

Intensity

MM:

Multimode optical fiber

WD:

Working distance

λ:

Wavelength

Declarations

Acknowledgments

This research was supported by the EU-funded Hungarian grant EFOP-3.6.1-16-2016-00008 and the János Bolyai Research Scholarship of the Hungarian Academy of Sciences.

Funding

See in the acknowledgment.

Availability of data and materials

The dataset are available in the present paper.

Authors’ contributions

All the authors made contribution to this work. BK built the optical system and performed the measurement. BK, BH and TS evaluated and interpreted the data and wrote the manuscript. All authors read and approved the final manuscript.

Competing interests

The authors declare that they have no competing interests.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
Department of Optics and Quantum Electronics, University of Szeged, Dóm tér 9, Szeged, H-6720, Hungary
(2)
MTA-SZTE Research Group on Photoacoustic Spectroscopy, University of Szeged, Dóm tér 9, Szeged, H-6720, Hungary
