Dual parameter measurement system for temperature and stress based on Sagnac interferomter

The sensor is designed by combination of photonic crystal fiber (PCF) and fiber Bragg grating (FBG), which is based on Sagnac interferometer to measure temperature and stress simultaneously in changing environment. The interference between two parameters is avoided by cascading two wavelength moving reverse components in this sensor system. When the PCF is connected with FBG or not, the linearity of stress sensing is 0.98 and 1, respectively. The stress sensitivity for − 0.150 nm/N and the temperature sensitivity for 0.0113 nm/°C are achieved on the dual-parameter system. In addition, the measurement of dual-parameters of temperature and stress of the complex environment is successfully realized in experiment.

Introduction

Optical fiber sensor is a device, which is used for measuring various physical parameters by the changes of physical characteristics such as interference, diffraction, polarization, reflection and loss of light caused by light propagation in the optical fiber [1,2,3,4,5,6,7,8]. The optical fiber offer many excellent characteristics such as low loss, wide frequency band, large amount of information, small size, light weight, and good winding property. However, the traditional sensor can not be used in the harsh environment of high temperature and electromagnetic field. The optical fiber sensors with the diversity structure have rapidly developed and used in different disciplines application. Nowadays, the optical fiber sensor is widely applied in the optical communication, computer, automatic control, biomedicine, measurement, transportation, national defense and civil appliances.

There are several existing methods to measure physical parameters. The main types of optical sensors include Mach-Zehnder interferometer sensors [9, 10], surface plasmon resonance (SPR) sensors [11, 12], Fabry-Perot (FB)interferometer sensors [13], whispering gallery mode (WGM) resonator sensors [14, 15] and Sagnac interferometer sensors [16, 17]. Presently, Sagnac interferometer sensors have evolved into a powerful contender of sensing applications for multiple physical parameters because of their high reliability and sensitivity, small volume, rapid response and easy integration [18]. The sensing principle of the Sagnac interferometer sensor can be traced back to 1982 and was first studied on a nonreciprocal configuration of fiber optic gyroscope in theory and experiment by J Pavlath and Shaw [19]. The FBG can be used for stress, refractive index (RI), hydrogen and temperature sensor. Actually, The FBG sensor is more suitable for the distributed measurement due to its wavelength multipliable capability, and can be used for temperature compensation [20,21,22]. For PCF, the photonic band-gap fiber with air core was successfully fabricated in 1999. With the development of technology, PCF has been rapidly applied and used for the strain [23, 24], temperature [25], curvature and refractive index sensing [26, 27]. However, the single device multiple parameters sensor is limited by the two limitation factor of cross-sensitivity and demodulation complex, which greatly hinders the development of multi-parameter sensors.

In this paper, a new experimental device is proposed which can measure the dual parameters of temperature and stress simultaneously. The PCF and FBG were composed in the hybrid structure to be used for stress and temperature sensing respectively. The corresponding characteristic peaks move to opposite direction when the stress and temperature are changing with the environment. Therefore, the mutual interference of parameters is avoided in the sensing system successfully. The designed concept has a guiding significance in the field of multi-parameter sensing.

Experimental methods

FBG is a kind of passive device, which is made by the periodic modulation of the refractive index of the fiber core. The period is usually between tens of nanometers and hundreds of nanometers. When a broad band pulse is propagated in the fiber, a narrow-band pulse is reflected while the rest is transmitted. This narrow-band pulse is called the Bragg reflection with a center wavelength λB.The Bragg reflection wavelength depends on the spacing of the refractive index modulations in the fiber. The center reflection wavelength of the FBG based on the coupling mode theory can be written as follows.

$$ {\lambda}_B=2{\mathrm{n}}_{eff}\Lambda $$
(1)

Where neff is the effective refractive index; Λ is the grating period; λB is Bragg wavelength. Therefore, any wavelengths that satisfied Eq. (1) will be regarded as reflection wavelengths of the FBG.

In addition, when neff changes, the reflected wavelength also shifts accordingly and reflected wavelength of the FBG changes with variation of the effective refractive index. The relation of wavelength ΔλB and temperature ΔT is followed as,

$$ \frac{\Delta {\lambda}_B}{\lambda_B}=\left(\alpha +\xi \right)\Delta \mathrm{T} $$
(2)

Where, ΔT is the thermal expansion coefficient of the fiber, \( \xi =\frac{1}{n}\frac{dn}{dT} \) is the thermal optical coefficient of the fiber.

The PCF fiber loop mirror is composed of a 3 dB coupler, the PCF and FBG. The initial signal light enters into 3 dB coupler and divides into two beams: one propagating along in clockwise direction, called the forward wave; and the other one propagating counterclockwise, called the reverse wave. The two beams go through the loop propagation and then return to coupler and finally coherent output to achieve the signal light filter. The experiments are carried out based on Eqs. (1) and (2).

Results and discussion

Temperature sensing

The broadband source (BBS), 3 dB coupler, PCF, FBG, optical spectrum analyzer (OSA) and temperature control box (TCB) are fabricated, as shown in Fig. 1. The fiber grating and the temperature-insensitive PCF are connected to measured the temperature of the environment, which effectively avoids the cross-sensitive in multi-parameter problem.

Fig. 1
figure1

Schematic of experimental principle

The spectrum relation of the coupling peak intensity and the change temperature were shown in Fig. 2. We insert the enlarged image into Fig. 2 because it is not easy to distinguish the optical spectrum when the temperature is at 30, 60, 90, 120 °C.

Fig. 2
figure2

The spectral curve under different temperature

In Fig. 2, the broad peaks center of 1531.00 nm is corresponded to the characteristic peak of PCF. The narrow peaks with a range of 1550.01 ~ 1551.45 nm is the characteristic peak of FBG. With the increasing of temperature, the characteristic peak of FBG is red shifted obviously, while the peak of PCF does not drift. As is shown in Fig. 1, both of the PCF and FBG are in the TCB, while the red-shifted of the characteristic peak only occurred in FBG with the temperature increasing, which proves that PCF is insensitive to temperature. The waveform of the FBG does not change except red-shifted at different temperatures from the inset of Fig. 2, that is to say, the temperature measurement is stable.

The central wavelengths of characteristic peaks of FBG with PCF (red dots) or not (black squares) in different temperatures are shown in Fig. 3. The black line and the red line depict the trends of wavelength changing. The peak wavelengths changes with temperature in the single FBG that is given as

$$ {\displaystyle \begin{array}{l}Y=0.01064X+1549.68265\\ {}{R}^2=0.99895\end{array}} $$
(3)
Fig. 3
figure3

Peak wavelengths versus temperature for single FBG and connector of FBG and PCF

The peak wavelengths changes with temperature in connector of FBG and PCF that is given as

$$ {\displaystyle \begin{array}{l}Y=0.01127X+1549.74193\\ {}{R}^2=0.99895\end{array}} $$
(4)

The slope of the straight line of FBG and connecting FBG and PCF is 0.01064 and 0.01127, respectively. We clearly see that the temperature sensitivity of FBG is improved by connecting with PCF. The linearity of the two straight lines are both 0.99895. The experimental results exhibit a good repetition and stability.

To improve the performance of the dual-parameter measurement system, the FBG was coated with a thin layer of ITO by the PLD (pulsed laser deposition). The transmission spectrum and fitting line of the system after FBG coated is shown in Fig. 4. The partial enlargement of the FBG interference spectrum at different temperatures is displayed in inset (a). The fitted line graph indicated in inset (b) shows the relationship between the peak wavelength and temperature of the coated FBG.

Fig. 4
figure4

the overlay spectral and fitted line graph of the dual-parameter measurement system after coated at different temperatures. a The partial magnified spectrum of FBG. b The fitted line graph of the peak wavelength with temperature of the FBG

The waveform is stable with no distortions and miscellaneous peaks, which is presented in Fig. 4. The characteristic peak of FBG presents red shift with the temperature increasing from 30 to 150 °C as shown in inset (a). The peak waves of the coated FBG are changing from 1549.90 nm to 1551.10 nm. The results of the experiment and simulating line are highly consistent, which is depicted in inset (b). The calculated sensitivity and linearity of temperature are 0.01 nm/°C and 1, respectively. Therefore, the stability and the linearity of the proposed temperature measurement sensor are fully demonstrated.

Since ITO is a conductive and transparent semiconductor metal oxide which is sensitive to current and light, the ITO film can be used to measure refractive index, humidity and pH. Although the temperature sensitivity was not improved, there was no significant decrease, which is indicated that coating ITO on the FBG does not have a significant effect on the measurement of its temperature. It is the method of coating ITO on FBG that provides a scientific research idea for multi-parameter measurement.

Pressure sensing

Dual-parameter sensor of temperature and pressure based on Sagnac interferometer have been designed in this experiment. The principle of the pressure sensing and experimental results are analyzed as following.

In pressure sensing, the sensitive fiber is used of PCF as its peak wavelength of characteristic peak is 1531.8 nm. The stress sensor of single PCF device which is based on Sagnac interferometer was fabricated and measured. BBS, 3 dB coupler, PCF, OSA and EAB are used in this experiment which is shown in Fig. 5(a). In the stress sensing experiment, we affixed the PCF to the isometric beam axis. The transmission peak is obtained in our experiment as large as possible by adjust the angle of the arms of the loop mirror and then fix it. The strength beam in this experiment is made of plexiglass. In Fig. 5(a), the beam length L is 306.9 mm, the beam bottom width is 74.5 mm, the upper bottom width b is 30.0 mm and the thickness h is 5.4 mm. The stress of the PCF was changed by adding weight at the end of the beam and the change of spectrum was detected by OSA in the experiment. Figure 5(b) is the sensitive probe of PCF and Fig. 5 is the schematic diagram of the pressure experiment. The characteristic peak of PCF are shown in Fig. 6. The spectra overlaid at the weight of 0, 1, 2, 3, and 4 N are shown in Fig. 6. Each waveform of the spectra is not affected by adding weights and the peak power corresponding to the spectra is the vicinity of − 42 dBm.The blue-shift of peak wavelength is small because of the wide spectrum. In order to design a sensitive optical fiber sensor of dual-parameter, FBG is added to the pressure sensor and the schematic diagram is shown in Fig. 7. It is used for temperature sensing by being fixed in a metal device which can protect it from stress while the PCF is applied for stress sensing in this experiment.

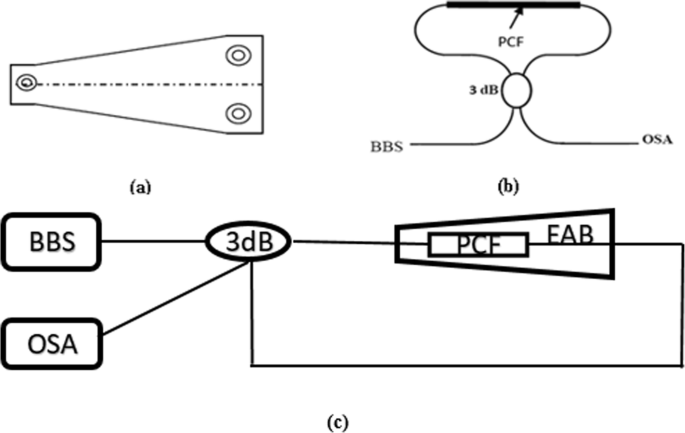

Fig. 5
figure5

Diagram of pressure sensing: a Isometric beam structure, b Photonic crystal fiber loop mirror, c The principle diagram

Fig. 6
figure6

The spectral curves under different pressure for connecting PCF

Fig. 7
figure7

The schematic diagram of optical fiber sensor of dual-parameter

At room temperature, the vertical suspension weight is added to one side of the PCF arm beam, and the beam will change with the increase of the hanging weight. The PCF will bend along with the cantilever beam because it is at the center of the equal arm beam and close contact with it.

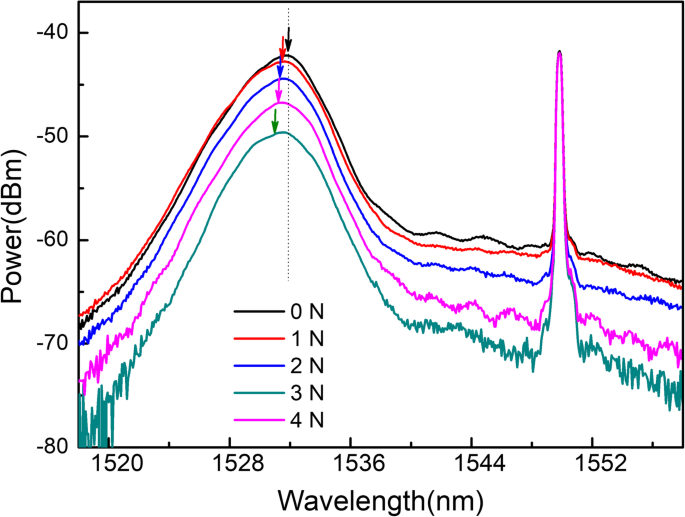

The spectral overlay curves with the gravity of 0, 1, 2, 3, and 4 N are shown in Fig. 8.The five peaks of the FBG are perfectly coincident in Fig. 8. As the external pressure increasing, the characteristic peaks of the PCF move to shortwave direction, which is called the blue shift. The characteristic peak of PCF, which is used for pressure sensing has a blue shift when the pressure is increasing but the characteristic peak of temperature does not change. The characteristic peak of FBG, which is used for temperature sensing has a red shift with the increasing temperature. Therefore, the characteristic peaks of the two sensitive parameters are shifted to opposite directions when the temperature and pressure of the dual-parameter sensor are changed at the same time, which avoids the mutual interference problem of the dual-parameter detection. Meanwhile, a metal device is designed for avoiding the influence of the stress on FBG, which is also sensitive to temperature. In this way the temperature and stress can be easily separated.

Fig. 8
figure8

The spectral curves under different pressure in connecting of PCF and FBG

The two contrast fitting lines are the peak wavelength of PCF changing with stress increasing before connecting FBG and after, which is shown in Fig. 9. The red fitting line is before PCF connecting FBG and the black one is after connecting.

Fig. 9
figure9

Peak wavelength versus pressure mass

The peak wavelength sensitivity of 0.189 nm/N and 0.150 nm/N have been obtained based on FBG and PCF/FBG pressure sensors, which is shown in Fig. 9. The sensitivity of PCF and FBG of stress detection slightly drop due to the multiple splice losses of connecting than that of PCF, which can be improved by increasing the welding technique. As is shown in Fig. 9, there is a higher linearity of the fitted straight line by connecting with FBG. The experimental results are consistent with the fitting curves when FBG and PCF are linked together. Therefore, dual-parameter measure- ment sensor of combining between FBG and PCF have the strong reliability in application of a pressure measurement.

The wavelengths of dual-parameter measure- ments with temperature and stress are shown in Fig. 10. It is indicated that the wavelengths are changing to the opposite direction with the temperature and stress varying in the same time. The minimum distance between the temperature and stress characteristic peaks detected by the OSA is 18.305 nm. Therefore, the two characteristic peaks can effectively avoid mutual interference of dual-parameter. However, the Mach Zehnder interferometer needs two interference arms, which greatly limits the cascade of multi-sensor units and multi parameter sensing detection [28]. The transmission loss of FB interferometer is very large, which has a strong demand on the size of the cavity and is not conducive to long-distance transmission [13]. SPR needs precious metals, so it is costly [29]. The structure of the sensor designed by us is simple and easy to package. It can be used for two parameter and multi parameter sensors. By cascading different sensitive units, two or more specific tests, such as temperature and humidity, specific virus and cancer cell detection and protein detection, can be realized. The sensitivity is not significantly reduced and the stability is improved, so that the design idea of the system is feasible.

Fig. 10
figure10

Wavelength changes with temperature and stress diagram

Conclusions

The temperature and pressure dual-parameter sensor based on Sagnac interferometer and the sensitive probes of PCF and FBG are designed in theory and experiment. The temperature sensitivity of FBG is improved from 0.0106 nm/°C to 0.0112 nm/°C by connecting PCF. The linearity of temperature are both 0.9986 before and after FBG connecting with PCF. The linearity of stress sensing has been in theory and experiment. The temperature sensitivity of significantly improved by connecting with FBG, and the sensitivity is not lower than 0.150 nm/N.

The characteristic peaks of the temperature and pressure are red and blue shift respectively when the dual-parameter are changing at the same time, so dual-parameter do not interfere to interact each other. The structure of the sensor designed by us is simple and easy to package. It can be used for two parameter or multi parameter sensors. By cascading different sensitive units, two or more specific tests, such as temperature and humidity, specific virus and cancer cell detection and protein detection, can be realized. The optical fiber sensor of multi-parameter measurement gives impetus to potential application in the optical communication, automatic control, biomedicine measurement and so on.

Availability of data and materials

Please contact authors for data requests.

References

  1. 1.

    Xu, Z., Shu, X., Fu, H.: Sensitivity enhanced fiber sensor based on a fiber ring microwave photonic filter with the Vernier effect. Opt. Express. 25, 21559–21566 (2017)

    ADS  Article  Google Scholar

  2. 2.

    Huang, Q., Yu, Y., Ou, Z., Chen, X., Wang, J., Yan, P., Du, C.: Refractive index and strain sensitivities of a long period fiber grating. Photonic Sens.4, 92–96 (2014)

    ADS  Article  Google Scholar

  3. 3.

    Zhong, X., Wang, Y., Qu, J., Liao, C., Liu, S., Tang, J., Wang, Q., Zhao, J., Yang, K., Li, Z.: High-sensitivity strain sensor based on inflated long period fiber grating. Opt. Lett.39, 5463–5466 (2014)

    ADS  Article  Google Scholar

  4. 4.

    Verma, R., Gupta, B.D.: Detection of heavy metal ions in contaminated water by surface plasmon resonance based optical fibre sensor using conducting polymer and chitosan. Food Chem.166, 568–575 (2015)

    Article  Google Scholar

  5. 5.

    Minkovich, V., Sotsky, A.: Tapered photonic crystal fibers coated with ultra-thin films for highly sensitive bio-chemical sensing. J. Eur. Opt. Soc.15(1), 1–6 (2019)

    Article  Google Scholar

  6. 6.

    Shen, C., Zhong, C., Chu, J., Zou, X., Jin, Y., Wang, J., Dong, X., Li, Y., Wang, L.: Temperature-insensitive strain sensor using a fiber loop mirror based on low-birefringence polarization-maintaining fibers. Opt. Commun.287, 31–34 (2013)

    ADS  Article  Google Scholar

  7. 7.

    Wang, S., Lu, P., Mao, L., Liu, D., Jiang, S.: Cascaded interferometers structure based on dual-pass Mach-Zehnder interferometer and Sagnac interferometer for dual-parameter sensing. Opt. Express. 23, 674–680 (2015)

    ADS  Article  Google Scholar

  8. 8.

    He, H., Wang, L., Yin, L.: Asymmetric elliptical-hole dual-core photonic crystal fiber with enhanced pressure sensitivity. Opt. Fiber Technol.20, 380–383 (2014)

    ADS  Article  Google Scholar

  9. 9.

    Lee, B.: Review of the present status of optical fiber sensors. Opt. Fiber Technol.9, 57–79 (2003)

    ADS  Article  Google Scholar

  10. 10.

    Gallego, D., Lamela, H.: High-sensitivity ultrasound interferometric single-mode polymer optical fiber sensors for biomedical applications. Opt. Lett.34, 1807–1809 (2009)

    ADS  Article  Google Scholar

  11. 11.

    Homola, J.: Present and future of surface plasmon resonance biosensors. Anal. Bioanal. Chem.377, 528–539 (2003)

    Article  Google Scholar

  12. 12.

    Aray, A., Chiavaioli, F., Arjmand, M., Trono, C., Tombelli, S., Giannetti, A., Cennamo, N., Soltanolkotabi, M., Zeni, L., Baldini, F.: SPR-based plastic optical fibre biosensor for the detection of Creactive protein in serum. J. Biophotonics. 9, 1077–1084 (2016)

    Article  Google Scholar

  13. 13.

    Wang, M., Yang, M., Cheng, J., Zhang, G., Liao, C., Wang, D.: Fabry-Pérot interferometer sensor fabricated by femtosecond laser for hydrogen sensing. IEEE Photonics Technol. Lett.25, 713–716 (2013)

    ADS  Article  Google Scholar

  14. 14.

    Vollmer, F., Arnold, S.: Whispering-gallery-mode bio-sensing: label-free detection down to single molecules. Nat. Methods. 5, 591–596 (2008)

    Article  Google Scholar

  15. 15.

    Boleininger, A., Lake, T., Hami, S., Vallance, C.: Whispering gallery modes in standard optical fibres for fibre profiling measurements and sensing of unlabelled chemical species. Sensors. 10, 1765–1781 (2010)

    Article  Google Scholar

  16. 16.

    Wang, J., Shen, C., Lu, Y., Chen, D., Zhong, C., Chu, J., Dong, X., Chan, C.: Liquid Refractive Index Sensor Based on a Polarization-Maintaining Fiber Loop Mirror. IEEE Sens. J.13, 1721–1724 (2013)

    ADS  Article  Google Scholar

  17. 17.

    Shi, J., Su, G., Xu, D., Wang, Y., Zhang, H., Fu, S., Feng, J., Yan, C., Xu, W., Yao, J.: Dual-Parameter Sensor Using a Long-Period Grating Concatenated With Polarization Maintaining Fiber in Sagnac Loop. IEEE Sens. J.16, 4326–4330 (2016)

    ADS  Article  Google Scholar

  18. 18.

    Pavlath, G.A., Shaw, H.J.: Birefringence and polarization effects in fiber gyroscopes. Appl. Optics. 21, 1752–1757 (1982)

    ADS  Article  Google Scholar

  19. 19.

    Su, J.: Label-free biological and chemical sensing using whispering gallery mode optical resonators: past, present, and future. Sensors. 17, 540 (2017)

    Article  Google Scholar

  20. 20.

    Yang, R., Bao, H., Zhang, S., Ni, K., Zheng, Y., Dong, X.: Simultaneous Measurement of Tilt Angle and Temperature With Pendulum-Based Fiber Bragg Grating Sensor. IEEE Sens. J.15, 6381–6384 (2015)

    ADS  Article  Google Scholar

  21. 21.

    Arasu, P., Noor, A.S.M., Shabaneh, A.A.: Absorbance properties of gold coated fiber Bragg grating sensor for aqueous ethanol. J. Eur. Opt. Soc. 9, 14018 (2014)

    Article  Google Scholar

  22. 22.

    Yuan, L.L., Zhao, Y., Sato, S.Y.: Development of a low-cost and miniaturized fiber Bragg grating strain sensor system. Jpn. J. Appl. Phys.56, 052502 (2017)

    ADS  Article  Google Scholar

  23. 23.

    Dong, B., Hao, E.J.: Core-offset hollow core photonic bandgap fiber-based intermodal interferometer for strain and temperature measurements. Appl. Optics. 50, 3011–3014 (2011)

    ADS  Article  Google Scholar

  24. 24.

    Bock, W.J., Chen, J., Eftimov, T., Urbanczyk, W.: A photonic crystal fiber sensor for pressure measurements. IEEE T. Instrum. Meas. 55, 1119–1123 (2006)

    Article  Google Scholar

  25. 25.

    Qian, W., Zhao, C., Chan, C., Hu, L., Li, T., Wong, W., Zu, P., Dong, X.: Temperature Sensing Based on Ethanol-Filled Photonic Crystal Fiber Modal Interferometer. IEEE Sens. J. 12, 2593–2597 (2012)

    ADS  Article  Google Scholar

  26. 26.

    Gong, H., Chan, C.C., Zhang, Y.F., Wong, W.C., Dong, X.Y.: Miniature refractometer based on modal interference in a hollow-core photonic crystal fiber with collapsed splicing. J. Biomed. Opt. 16, 017004 (2011)

    ADS  Article  Google Scholar

  27. 27.

    Hu, D.J., Lim, J.L., Jiang, M., Wang, Y., Luan, F., Shum, P.P., Wei, H., Tong, W.: Long period grating cascaded to photonic crystal fiber modal interferometer for simultaneous measurement of temperature and refractive index. Opt. Lett.37, 2283–2285 (2012)

    ADS  Article  Google Scholar

  28. 28.

    Liou, J., Yu, C.: All-fiber Mach-Zehnder interferometer based on two liquid infiltrations in a photonic crystal fiber. Opt. Express. 23, 6946–6951 (2015)

    ADS  Article  Google Scholar

  29. 29.

    Mitsuhiro, I., Seki, A., Watanabe, K.: Gold thickness dependence of SPR-based hetero-core structured optical fiber sensor. Sens. Actuators B Chem. 106, 363–368 (2005)

    Article  Google Scholar

Download references

Acknowledgments

Tanks for supporting the National Natural Science Foundation of China under Youth Science Foundation Project (NSFC-61805005), The National Natural Science Foundation of China (NSFC-61473023).

Author details

All the authors are in College of Applied Sciences, Beijing University of Technology, No.100 Pingleyuan, Chaoyang District, Beijing 100,124, China.

Funding

This work is funded by the National Natural Science Foundation of China under Youth Science Foundation Project (NSFC-61805005), The National Natural Science Foundation of China (NSFC-61473023).

Author information

Affiliations

Authors
